Z Cam Cine Cameras>E2-S6 Super 35mm 6K Cinema Camera (EF Mount)

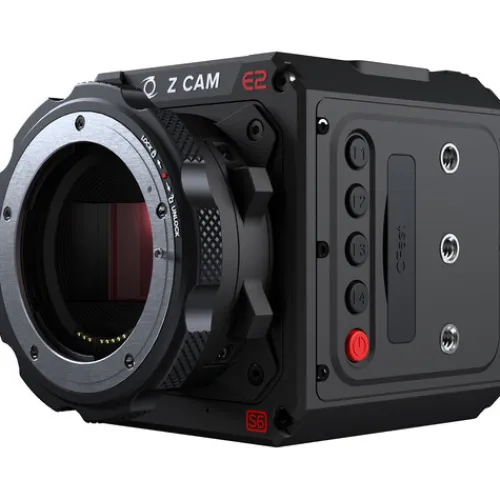

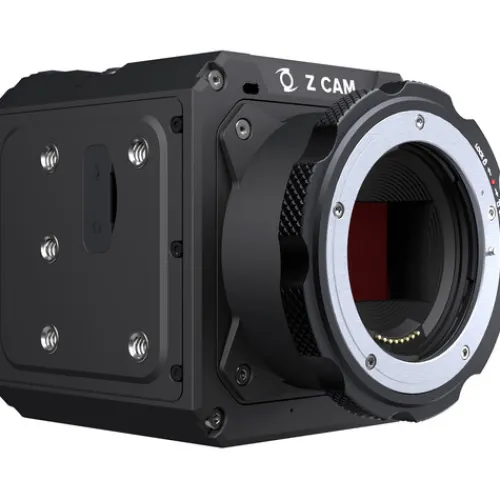

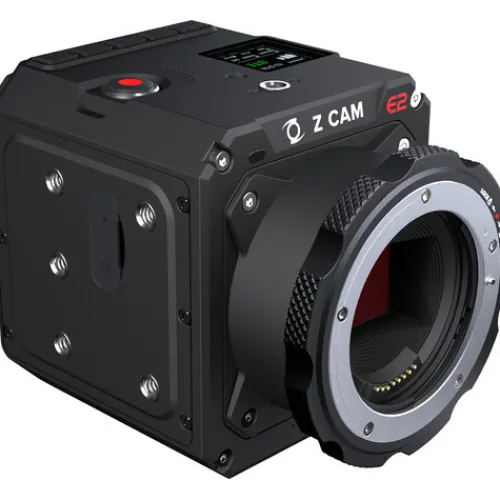

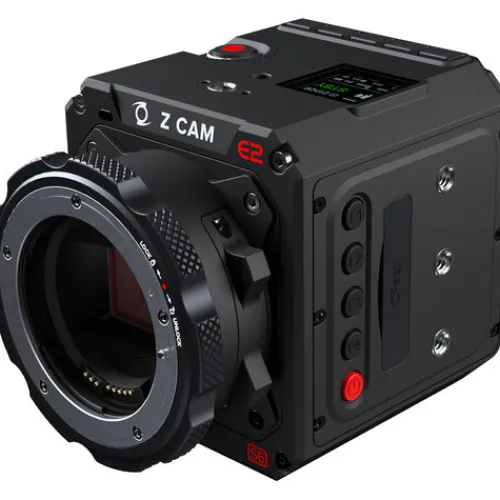

The Z CAM E2-S6 Super 35 6K Cinema Camera with a Canon EF lens mount allows you to capture high-quality cinematic footage professionally. The camera is equipped with a Super 35 sensor that supports 10-bit 4:2:2 colour and nominally 14 stops of dynamic range. It also supports timecode, shoots up to 6K at up to 60 frames per second, DCI 4K at up to 75 frames per second, and 1080p at up to 120 frames per second, and records data at up to 300 Mb/s onto CFast 2.0 media.

It supports recording formats MOV and MP4 using ProRes raw for 12-bit recording and H.265 for 10-bit recording (H.264 supports 8-bit recording) when using the latest firmware update that allows the camera to record in both ZRAW and ProRes formats. The HDMI 2.0 port supports 4K60, 10-bit 4:2:0 video output. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port.

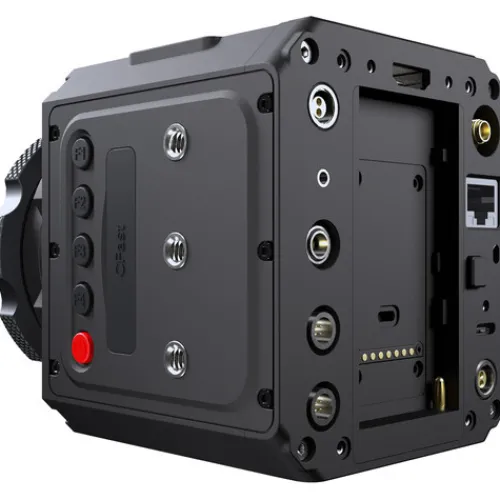

The E2-S6 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, an Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi and view a live image preview and configure settings. The camera can record time-lapse, and slow motion, and can even live stream via its Gigabit Ethernet port. You can also control it locally by the buttons along the side of the camera.

The E2-S6 can be powered by a separately available battery using the built-in L-series battery mount, or you can power the camera using a separately available power adapter using its 2-pin LEMO port. The camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories.

Firmware Update

The latest firmware enables ZRAW and ProRes 422 recording to the camera.

4K Capture and Recording

Unburdened by a recording time limit, you can record 6K at up to 60 fps for up to the limit of your recording media’s capacity

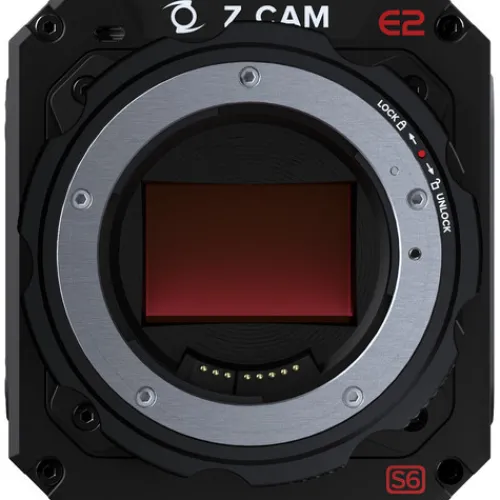

CMOS sensor with 14 stops of dynamic range

The camera supports ZRAW, ProRes raw, and REC. 709, Z-Log2, FLAT, and HLG

H.265 (10-bit colour) internal recording on CFast 2.0 cards

4K60, 10-bit 4:2:2 video output through HDMI 2.0 is supported

Full-metal housing for efficient heat dissipation

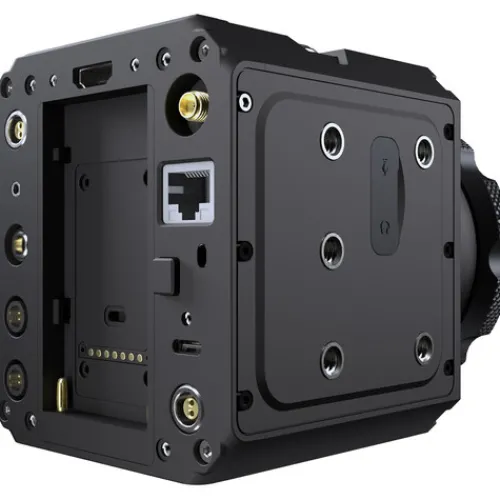

Interfaces and Expandability

USB 3.0 Type-C for camera control and data transformation only

Two serial ports for camera control

Ethernet port for live view, control, and file transfer to a browser or a computer running Z CAM software

LANC port for remote control including power on/off

iOS App

Z Camera is a mobile camera application live preview and controlled through 5G or 802.11n Wi-Fi. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on the on-camera live preview.

Camera Settings

White balance: Auto, preset, manual (2300 to 7500K)

Focus modes: MF, AF, CAF

Image: Brightness, contrast, saturation, sharpness

LUT: REC. 709, Z-Log2, FLAT, HLG

Timecode: Current time, manual input

Camera Body

Made from aluminium for strength and heat dissipation

2-pin LEMO 12 VDC power output

Powers from optional 2-pin LEMO 12 VDC adapter or optional L-series batteries
