Sale!

SmallRig Battery Chargers & Plates>145W 4-Port PD Power Adapter (UK Standard) 4749

SmallRig Battery Chargers & Plates>145W 4-Port PD Power Adapter (UK Standard) 4749

Original price was: $136.74.Current price is: $103.92.

SKU: SKUBKQkW66awC Categories: Accessories, Batteries & Power, Battery Chargers & Plates Tag: SmallRig Brand: SmallRig

Description
Reviews (0)

Key Features:

High Power Output Support
Fast Charging with Multiple Ports
Multi-Device Charging Compatibility
Safety Short-Circuit & Overcurrent Protection
Portable & Travel-Friendly Design
LED Power Status Indicators

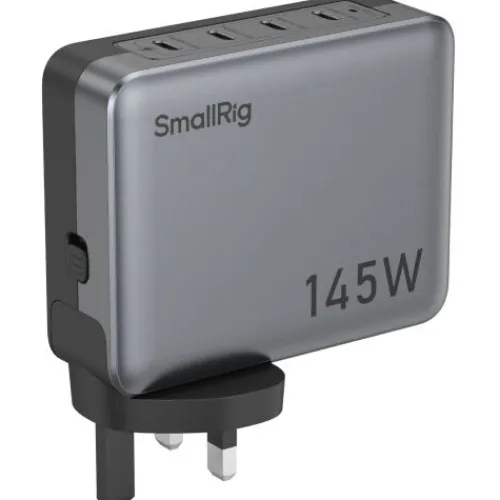

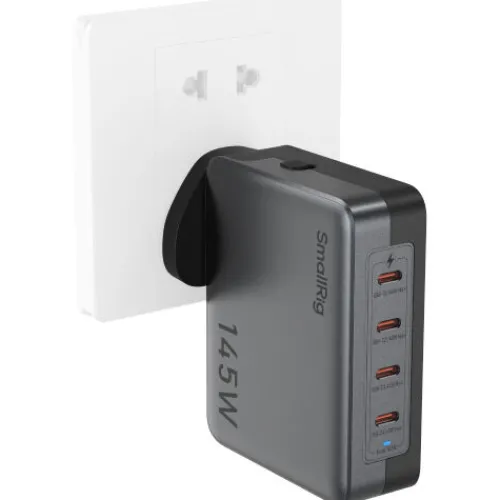

SmallRig 145W 4-Port PD Power Adapter (UK Standard) 4749

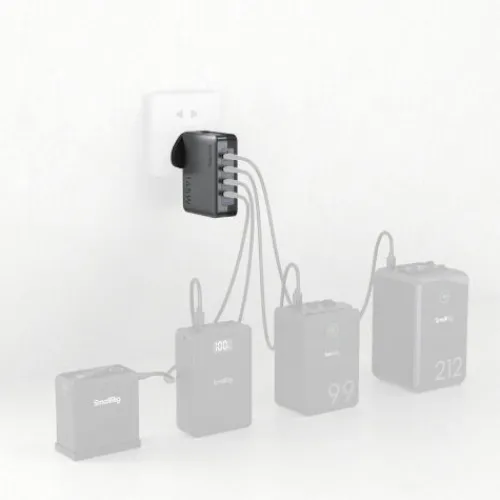

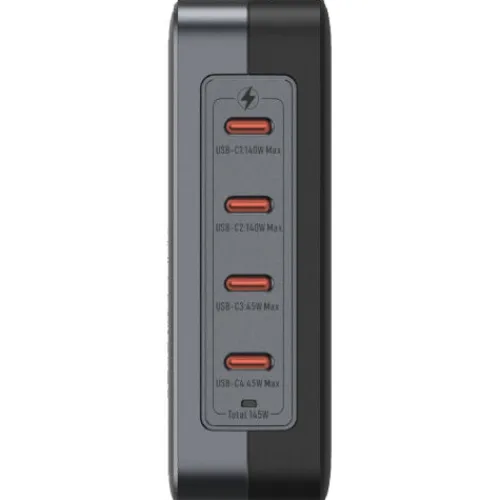

The SmallRig 145W 4-Port PD Power Adapter (UK Standard) 4749 is a versatile and efficient charging solution with a total output power of 145W. Equipped with four USB-C ports, it allows for simultaneous charging of devices like V-mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, and computers. USB-C1 and C2 support up to 140W single-port output via PD3.1, while USB-C3 and C4 offer up to 45W. The adapter is compact, travel-friendly, and includes short-circuit and overcurrent protection for safe usage. A power status indicator light shows connection status.

Button / Indicator Function:

Power connected: Light on.

Power disconnected: Light off.

Product Weight	0.350 ± 0.01kg
Product Dimensions	9.7 x 7.6 x 3.1cm
Material	PC
Total Output Power	145W
Power Input	100-240VAC 50 / 60Hz 2.2A

SINGLE-PORT MODE

USB-C1 / C2	28V5A (140W) Max
USB-C3 / C4	20V2.25A (45W) Max
Total	40W Max

DUAL-PORT MODE

	C1 / C2 + C3 / C4
	USB-C1 / C2
	USB-C3 / C4
	C1 + C2
	USB-C1 / C2
	C3 + C4
USB-C3 / C4	9V2.22A Max
Total	145W Max

TRIPLE-PORT MODE

	C1 + C2 + C3 / 4
	USB-C1
	USB-C2
	USB-C3 / C4
	C1 / C2 + C3 + C4
USB-C1 / C2	20V5A Max
USB-C3 / USB-C4	9V2.22A Max
Total	145W Max

QUAD-PORT MODE

USB-C1	20V3.25A Max
USB-C2	20V1.5A Max
USB-C3	9V2.22A Max
USB-C4	9V2.22A Max
Total	145W Max

* Specifications subject to change by the manufacturer without notice.

SmallRig 145W 4-Port PD Power Adapter (UK Standard) 4749
Operating Instruction
User Manual
Guarantee Card
