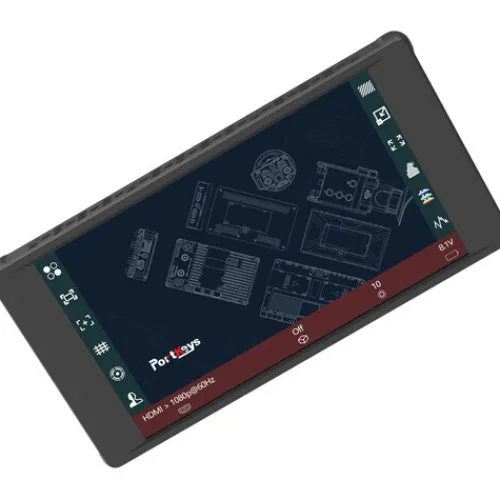

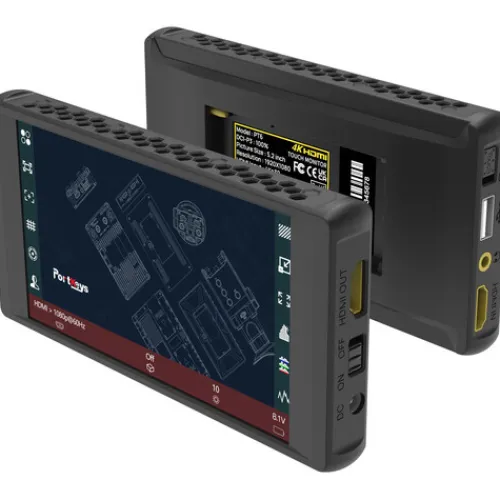

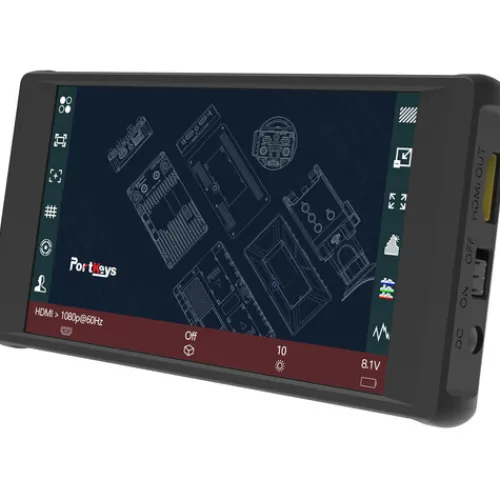

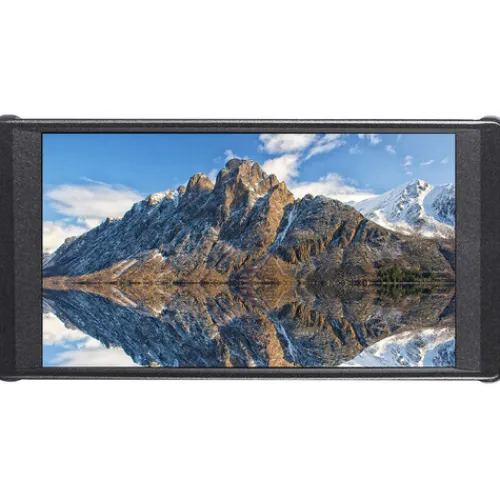

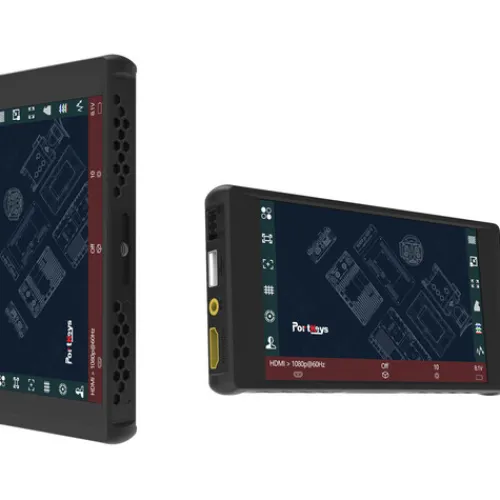

Portkeys Video Monitors & Accessories>PT6 5.2" 4K HDMI Touchscreen Monitor

Portkeys Video Monitors & Accessories>PT6 5.2″ 4K HDMI Touchscreen Monitor

$267.12

SKU: SKUOFLfsESIs9 Categories: Pro Video, Video Accessories, Video Monitors & Accessories Tag: PortKeys Brand: PortKeys

Description
Reviews (0)

Key Features:

5.2″ 1920 x 1080 Touchscreen Display
4K30 HDMI Input/1080p60 HDMI Output
3D LUT Output, UI Output, DCI-P3 Colour
600 cd/m² Bright/1500:1 Contrast Ratio
Vertical Output with Stretch Feature
Anamorphic Output, Brightness, Tint
DC Input, USB-A Output Port
Customized Peaking & Cropping
Sunshade & Tilting Shoe Bracket
L-Series & LP-E6 Battery Support

Portkeys PT6 Overview

Boost the quality of your video monitoring with the PT6 5.2″ 4K HDMI Touchscreen Monitor from Portkeys. This handy, 5.2″ touchscreen monitor supports the DCI-P3 wide colour gamut and comes with a range of imaging tools, such as focus peaking, image cropping and anamorphic output. It offers up to 4K30 HDMI input and 1080p60 output, UI output and a stretch function for vertical monitoring.

3D LUT Output

Provides the ability to output 3D LUTs for customized, nuanced monitoring.

Vertical Stretch

Real-time image stretching for vertical-mode capture.

Up to 4K HDMI Input

Supports up to DCI 4K30 input and 1080p60 output, both via HDMI.

Wide Colour Gamut

Covers 100% of the DCI-P3 wide Colour gamut, producing detailed, refined images.

Anamorphic HDMI Output

Calibrates anamorphic lenses, outputs via HDMI.
Supports 1.0/1.33/1.4/1.5/1.6/1.85/2/2.35x ratios and 0.25-4x user-defined adjustment range.

Touchscreen

Bright, compact, 5.2″ touchscreen for on-camera monitoring.

Imaging Tools

3D LUTs, anamorphic calibration
Vertical extension for portrait mode
Exposure: RGB and luma waveforms
Luma histogram, zebra
ARRI false Colour, false Colour
Focus: Zoom functions, customized peaking
Cropping: Customized cropping for viewing image details
Framing: Check field, grids, image flip, and crosshair marks
Display: Anamorphic, Colour temperature, contrast, and sharpness
Display: Brightness, tint, backlight, and underscan
Battery: Remaining power
Audio: Metering

DISPLAY

Panel Type	IPS-Type LCD
Display Size	5.2″ / 13.2 cm
Resolution	1920 x 1080
Aspect Ratio	16:09
Viewing Angle	Horizontal: 178°
Viewing Angle	Vertical: 178°
Touchscreen	Yes
Maximum Brightness	600 nits / cd/m2
Contrast Ratio	1500:1
Bit Depth / Colour Support	10-Bit (1.07 Billion Colours)
HDR Compatibility	Yes
Pixels Per Inch (ppi)	423 ppi
Colour Gamut	100% DCI-P3
Colour Gamut	100% Rec. 709
Real-Time LUT Monitoring	SDR, HDR
Image Controls	Anamorphic De-Squeeze, Colour Temperature Selection, Customizable Aspect Ratios, False Colour, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

INPUTS / OUTPUTS

Video I/O	1 x HDMI Input
Video I/O	1 x HDMI Output
Embedded Audio	HDMI
Audio I/O	1 x 1/8″ / 3.5 mm Headphone Output
Power I/O	1 x Barrel (24 VDC) Input
Other I/O	1 x USB-A 2.0 Input

FORMAT SUPPORT

Video Format	HDMI (10-Bit 4:4:4/4:2:2)
	DCI 4K: 24
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 60/59.94
Gamma Curve	HDR-HLG

POWER

DC Input Power	7 to 24 VDC
Battery Type	1 x LP-E6, L-Series
Power Consumption	6 W (Maximum)
Mounting	1 x 1/4″-20 Female

GENERAL

Material of Construction	Plastic, Polycarbonate
Dimensions	15.07 x 7.78 x 0.85 cm
Weight	0.170 kg

* Specifications subject to change by the manufacturer without notice

Portkeys PT6 5.2″ 4K HDMI Touchscreen Monitor
Sunshade
HDMI Cable
Micro-HDMI to HDMI Cable
Rubber Cover
MH-2 Mount
Storage Box
