Portkeys Video Monitors & Accessories>PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support

Portkeys Video Monitors & Accessories>PT5 II 5″ 4K HDMI Touchscreen Monitor with 3D LUT Support

Original price was: $308.46.Current price is: $179.67.

SKU: SKUlhFNu55hTV Categories: Pro Video, Video Accessories, Video Monitors & Accessories Tag: PortKeys Brand: PortKeys

Description
Reviews (0)

Key Features:

5″ 1920 x 1080 Touchscreen Display
4K HDMI I/O, 3D LUT Import via USB Port
500 cd/m² Bright/1000:1 Contrast Ratio
Updated with Heat Vents for Cooling
Focus Peaking, RGB & Luma Waveforms
False Colour, Histogram & Audio Metering
3.5mm Headphone Jack, On/Off Switch
DC Input, USB Type-A Output Port
Sunshade & Tilting Shoe Bracket
Optional L-Series & LP-E6 Plates

Compact 5″ 4K HDMI Touchscreen Monitor

The PT5 II 5″ 4K HDMI Touchscreen Monitor from PORTKEYS is a handy, compact monitor with a 5″ touchscreen. It has HDMI input and output, 3D LUT input via a USB Type-A port, and can support up to DCI 4K24 video signals. The PT5 II has been improved with better heat dissipation, with extra holes on its casing to keep it cool.

Redesigned Enclosure

The PT5 II enclosure has been redesigned for better cooling with additional vents..

Up to 4K HDMI Input

Supports up to DCI 4K24 input via HDMI.

Touchscreen

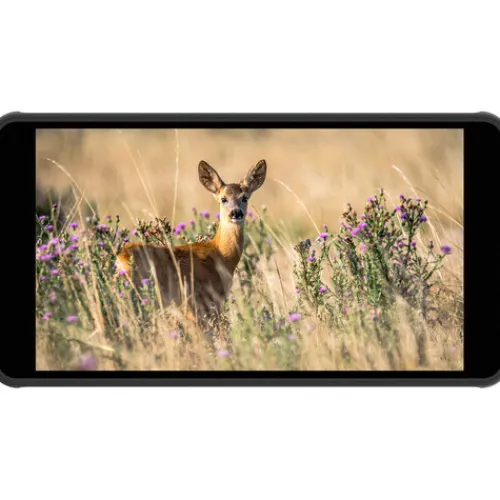

Bright, compact, 5″ touchscreen for on-camera monitoring.

3D LUT Input

Upload your 3D LUT via the USB Type-A port for customized viewing.

Imaging Tools

Exposure: RGB and luma waveforms, zebra, false Colour, and histogram
Focus: Peaking and zoom functions
Framing: Check field, grids, image flip, and crosshair marks
Display: Anamorphic, Colour temperature, contrast, and sharpness
Display: Brightness, tint, backlight, and underscan
Battery: Remaining power
Audio: Metering

DISPLAY

Panel Type	IPS-Type LCD
Display Size	5.0″ / 12.7 cm
Resolution	1920 x 1080
Aspect Ratio	16:09
Viewing Angle	Horizontal: 178°
Viewing Angle	Vertical: 178°
Touchscreen	Yes
Maximum Brightness	500 nits / cd/m2
Contrast Ratio	1000:1
Bit Depth / Colour Support	8-Bit+FRC (1.07 Billion Colours)
Pixels Per Inch (ppi)	441 ppi
Real-Time LUT Monitoring	SDR
Image Controls	Anamorphic De-Squeeze, Check Field, Colour Temperature Selection, False Colour, Focus Peaking, Histogram, Image Flip, Pixel Zoom, R/G/B/Chroma Only, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

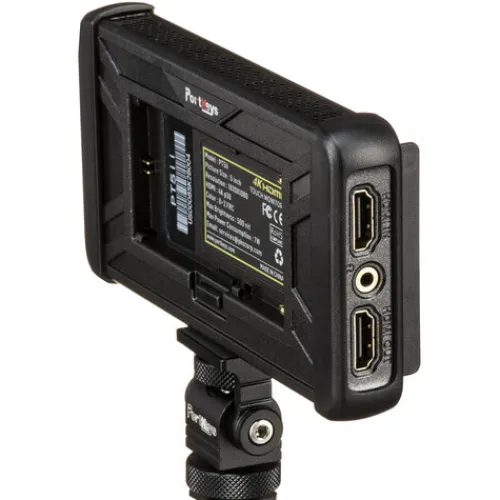

Video I/O	1 x HDMI Input
Video I/O	1 x HDMI Output
Embedded Audio	HDMI
Audio I/O	1 x 1/8″ / 3.5 mm Headphone Output

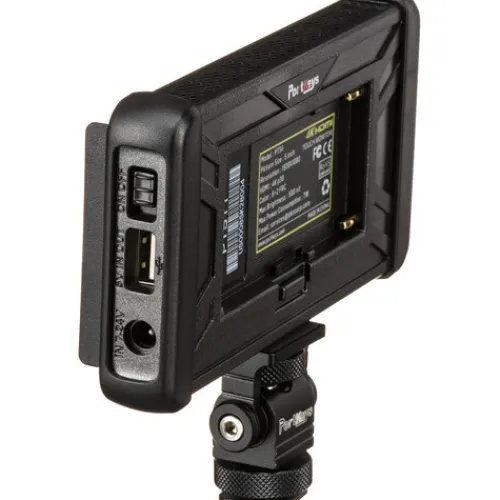

Power I/O	1 x Barrel (24 VDC) Input
Other I/O	1 x USB-A Input/Output

FORMAT SUPPORT

Video Format	HDMI
	DCI 4K: 24
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94/50
	480i: 60/59.94/50

POWER

DC Input Power	7 to 24 VDC

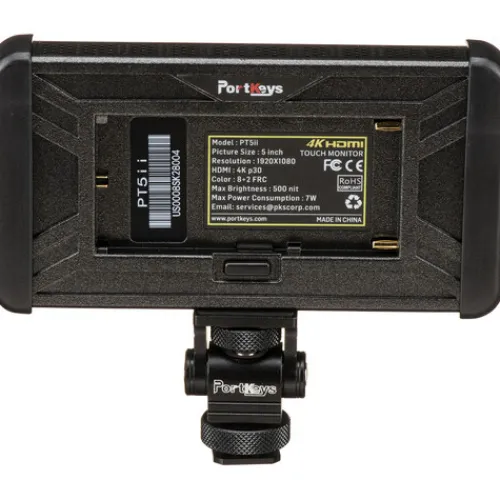

Battery Type	1 x LP-E6 or L-Series
Power Consumption	7 W

GENERAL

Material of Construction	Plastic
Dimensions	13.6 x 7.2 x 1.7 cm
Weight	0.13 kg

* Specifications subject to change by the manufacturer without notice

Portkeys PT5 II 5″ 4K HDMI Touchscreen Monitor with 3D LUT Support

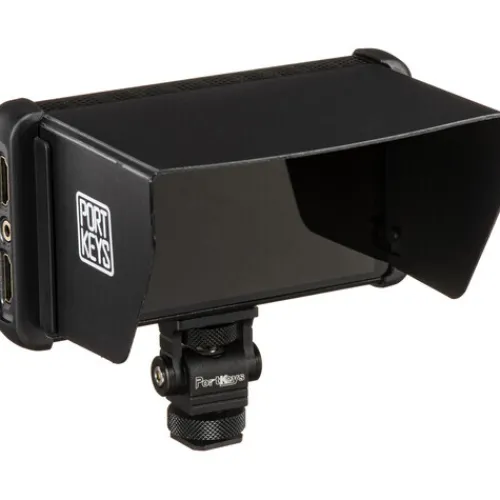

Sun Hood Kit

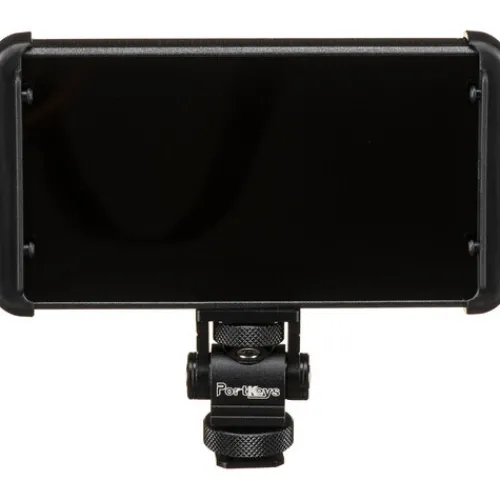

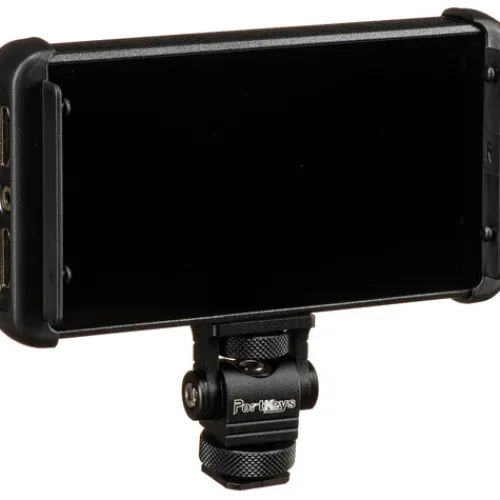

Tilting Shoe Mount
HDMI Type-A Cable
Micro-HDMI Cable

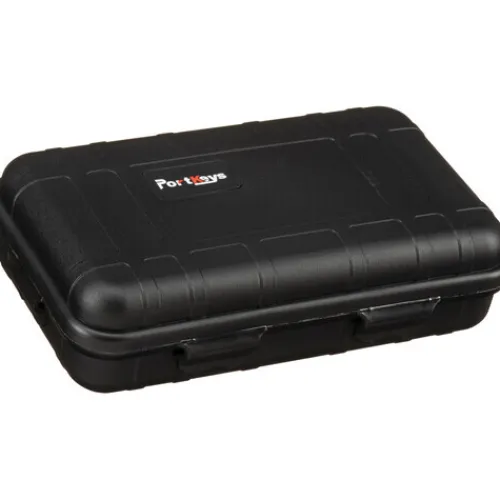

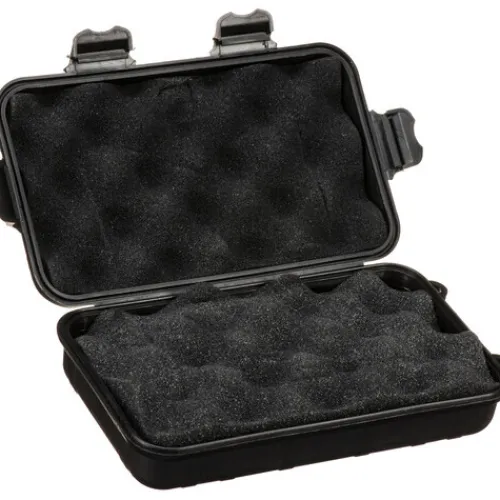

Safety Case
