Portkeys Video Monitors & Accessories>LH5P II 5.5" Touchscreen Monitor with Camera Control for Sony FS5/FS7/FX6/FX9

Portkeys Video Monitors & Accessories>LH5P II 5.5″ Touchscreen Monitor with Camera Control for Sony FS5/FS7/FX6/FX9

$279.84

SKU: SKU0oQ6HoQ8Fu Categories: Pro Video, Video Accessories, Video Monitors & Accessories Tag: PortKeys Brand: PortKeys

Description
Reviews (0)

Key Features:

5.5″ HDMI 1920 x 1080 Touchscreen
Sony FS5/FS7/FX6/FX9 Control
Up to DCI 4K24 Video Input Support
2200 cd/m² Brightness, HDR Preview

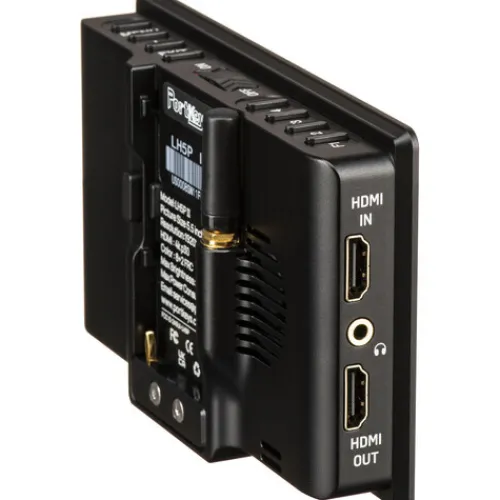

HDMI Input & Output, Headphone Jack
Integrated Bluetooth Module
Control Record, Shutter, Focus & More
Wired Tilta Nucleus-N/M Motor Control
3D LUT Support, L-Series Battery Plate
Camera Control Cable Included

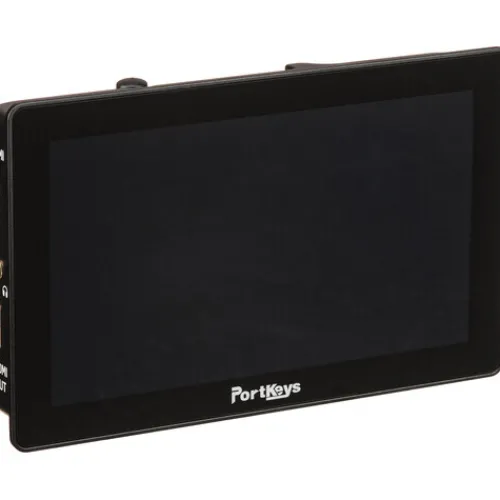

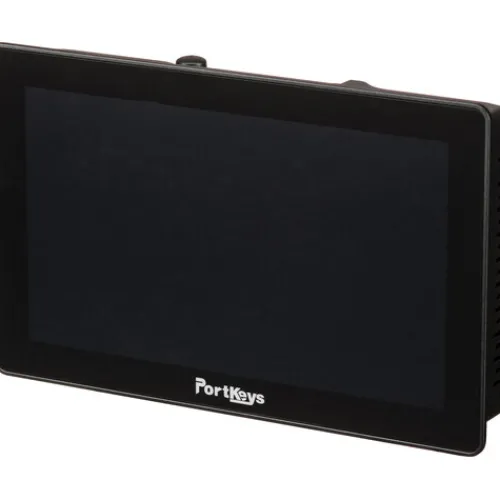

Portkeys LH5P II Overview

Add pro monitoring and control to select Sony cameras with the Portkeys LH5P II 5.5″ Touchscreen Monitor. This bright 5.5″ on-camera touchscreen display offers 2200 cd/m² brightness and can input and output up to DCI 4K24 or UHD 4K30 video via HDMI. Compatible with Sony FS5, FS7, FX6, and FX9 cameras, this monitor features a built-in Bluetooth module that enables select camera functions and comes with a control cable to connect your device to the monitor.

Camera Control Functions

Camera control via the integrated Bluetooth module and control cable
Control functions include iris, shutter, zoom, frame rate, and ISO

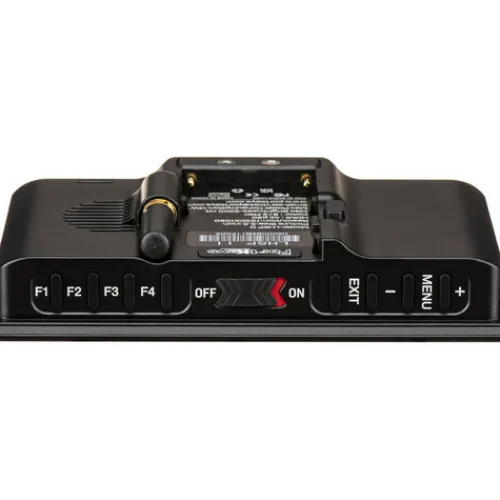

Set shortcut key F to control camera recording start/stop

Tilta Motor Control

Provides wired control for Tilta Nucleus-N/M lens motors.

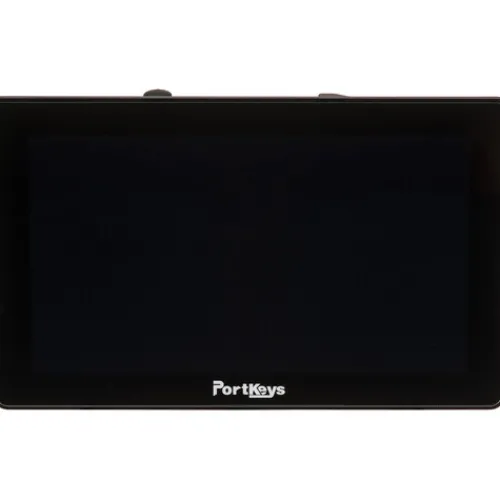

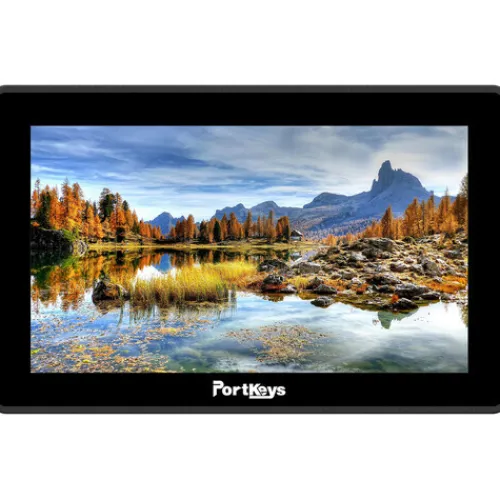

Hi-Bright 5.5″ Touchscreen Monitor

5.5″ LCD on-camera monitor features 2200 cd/m² and a 1000:1 contrast ratio for daylight visibility.

DCI/UHD 4K Video

Supports HDMI input and output up to DCI 4K24 or UHD 4K30.

Display Functions

3D LUT support with custom LUTs via USB
Customized peaking, false Colour, luma waveform
Real-time eye focus
Anamorphic de-squeeze
Anamorphic lens calibration
Frame guides, crosshairs, grids, crop
Check field, zebra, luma histogram
RGB waveform, audio meters
HDR/HLG support

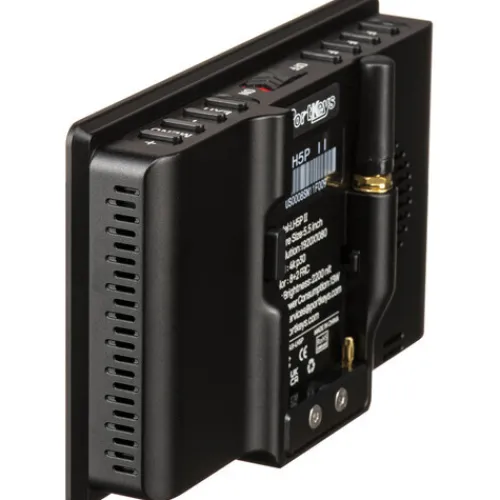

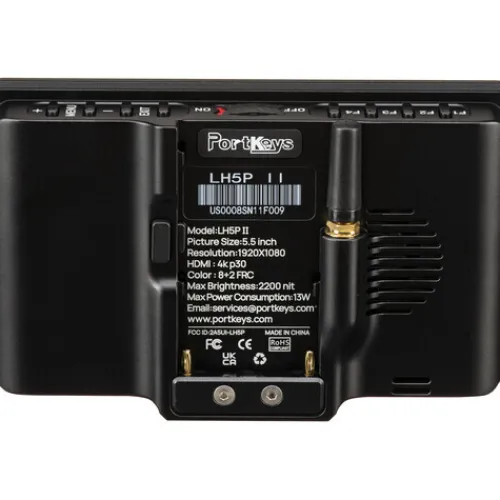

Sony L-Series Battery Plate

Power with the built-in L-Series battery plate or power your camera with a separately available dummy battery using the DC output.

DISPLAY

Panel Type	LCD
Display Size	5.5″ / 14.0 cm
Resolution	1920 x 1080
Aspect Ratio	16:09
Viewing Angle	Horizontal: 178°
Viewing Angle	Vertical: 178°
Touchscreen	Yes
Maximum Brightness	2200 nits / cd/m2
Contrast Ratio	10000:1
Bit Depth / Colour Support	10-Bit (1.07 Billion Colours)
HDR Compatibility	Yes
Pixels Per Inch (ppi)	401 ppi
Colour Gamut	100% Rec. 2020
Colour Gamut	85% DCI-P3
Image Controls	Anamorphic De-Squeeze, Check Field, Colour Temperature Selection, Customizable Aspect Ratios, False Colour, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Screen Markers, Waveform, Zebra
Video I/O	1 x HDMI Input
Video I/O	1 x HDMI Output
Embedded Audio	HDMI
Audio I/O	1 x 1/8″ / 3.5 mm Headphone Output

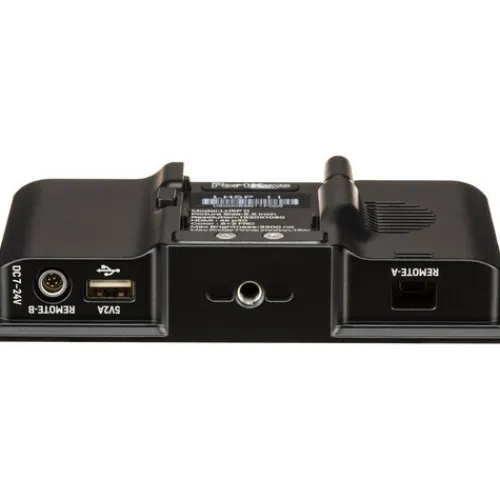

Power I/O	1 x Proprietary (24 VDC) Input/Output
Other I/O	1 x Mini-USB
Other I/O	1 x USB-A Input

FORMAT SUPPORT

Video Format	HDMI (8-Bit 4:4:4/4:2:2)
	DCI 4K: 24
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94/50
	480i: 60/59.94/50

POWER

DC Input Power	7 to 24 VDC
Battery Type	1 x L-Series
Power Consumption	13 W (Maximum)
Mounting	1 x 1/4″-20 Female

ENVIRONMENTAL

Certifications	FCC Part 15 C
Operating Temperature	32 to 104°F / 0 to 40°C

GENERAL

Material of Construction	Aluminium, Glass
Dimensions	14.4 x 9 x 3.08 cm
Weight	0.285 kg

* Specifications subject to change by the manufacturer without notice

Portkeys LH5P II 5.5″ Touchscreen Monitor with Camera Control for Sony FS5/FS7/FX6/FX9
Control Cable for Sony FS5/FS7/FX6/FX9
USB Flash Drive
Power Cord
2.4 GHz Antenna

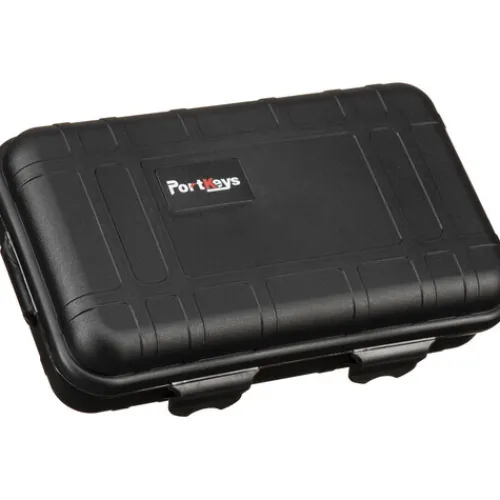

Storage Box
