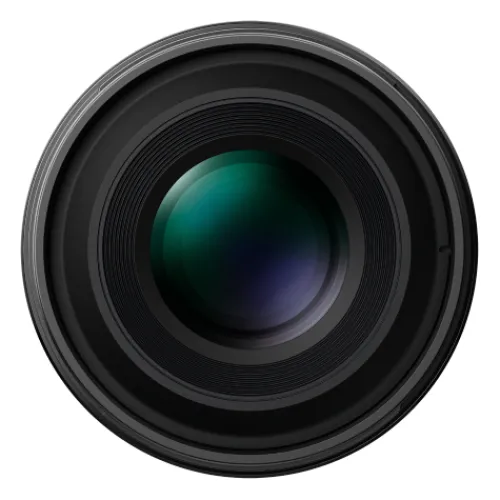

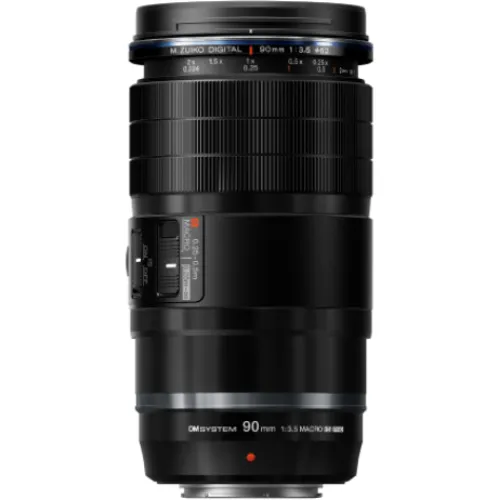

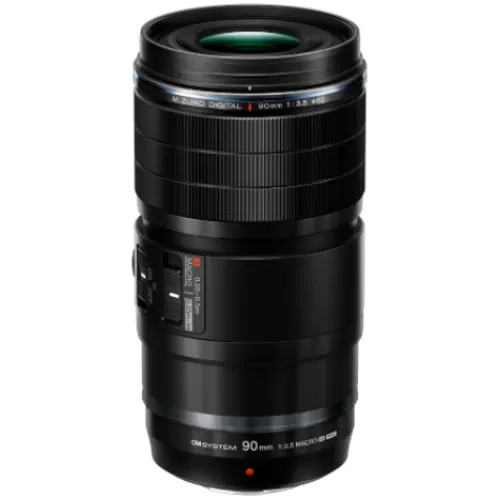

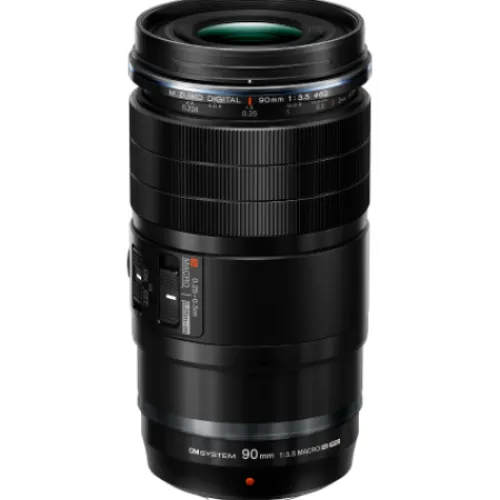

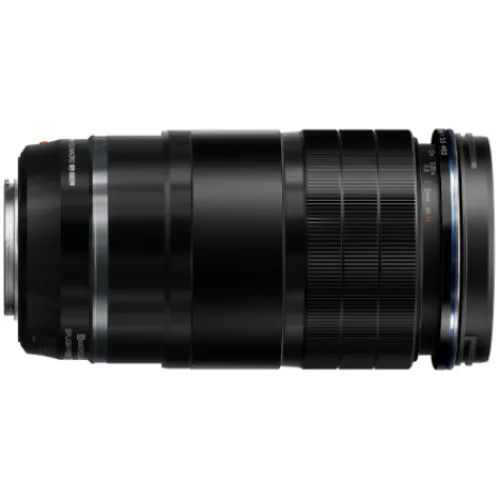

OM SYSTEM Micro Four Thirds Mount>M.Zuiko Digital ED 90mm f/3.5 Macro IS PRO Lens

The Perfect Macro For Close-Up Photography

Maximum image magnification 2x, 4x when paired with the optional MC-20 2x teleconverter, delivering flexibility for even the most extreme macro adventures The M.Zuiko Digital ED 90mm F3.5 Macro IS PRO is a lightweight, high-performance telephoto macro lens offering a maximum image magnification of 2x. The optional MC-20 2x teleconverter can also be attached, bringing maximum image magnification to 4x and allowing ultra-close-up shooting. Close-up shots of flowers, and even virtually microscopic objects such as the scales on a butterfly’s wing are reproduced in stunning detail.

In addition to these powerful close-up capabilities, the ED 90mm F3.5 Macro IS PRO can be used as a single-focal-length telephoto lens capable of capturing distant subjects with astonishing image clarity. It handles the transition from macro to telephoto seamlessly, allowing the user the versatility of shooting all day without having to worry about changing lenses.

To ensure stable performance with good depiction for everything from close-up to standard distances, the M.Zuiko Digital ED 90mm F3.5 Macro IS PRO features an amazing 18 elements in 13 groups, including two Super ED lenses, four ED lenses, one Super HR lens, and one HR lens. This allows the lens to suppress the chromatic aberration often seen when shooting close-up, offering high-quality well-focused images of the primary subject.

What’s more, even defocused areas are beautifully depicted, with minimal colour bleeding. The lens features ZERO (Zuiko Extra-low Reflection Optical) coating, which eliminates ghosts and flares for clear depictive performance even in difficult conditions such as backlit situations. This also provides effective suppression of spot flaring, a common occurrence with macro lenses.

High-speed, high-precision AF across the entire range, even for ultra-high-magnification macro shooting Defying conventional wisdom that says that ultra-high magnification shooting with a macro lens requires manual focusing, the ED 90mm F3.5 Macro IS PRO allows autofocus to be used across the entire range from close-up photography to infinity, with a maximum magnification of 2x or 4x with a teleconverter attached. A floating inner focusing system with two focusing lens groups are driven independently for high-speed AF, delivering high-quality images. AF is available even for ultra-high-magnification shooting, so using the Focus Stacking function, one of the features of OM SYSTEM interchangeable lens cameras, makes it easy to capture photos that are in focus across the subject, even for ultra-high-magnification macro shooting, and even when shooting handheld.

Compatible with 5-axis Sync IS in up to 7 steps

The lens and camera body’s image stabilisation mechanism work together to achieve 5-axis sync IS, which delivers up to 7 steps of shutter speed compensation. Furthermore, the ED 90mm F3.5 Macro IS PRO features an acceleration sensor on the lens that precisely detects motion blur for correction of shift, which has a significant impact on macro shooting. No need to bring a tripod, the powerful image stabilisation functionality allows the user the flexibility, even for handheld high-resolution photos.

IP53 4 splash & dust proof capabilities with a fluorine coating for unbeatable all-weather performance Like the flagship OM-1 camera from OM SYSTEM, the ED 90mm F3.5 Macro IS PRO offers excellent IP534 splash & dust proof performance, as well as freezeproof protection to -10°C, allowing the user to continue their adventures without worrying about their equipment, even in the harshest of outdoor environments.

Smooth, scratch-and dirt-resistant fluorine coating is used on the front-most lens for easy removal of dust and dirt using a blower or cloth. Pair the M.Zuiko Digital ED 90mm F3.5 Macro IS PRO with an OM SYSTEM weather-sealed body (sold separately) for the greatest field macro photography system ever made.

Other features

• Focus Limit Switch sets the focusing range to define focus limits to enable faster focusing when shooting, improving AF speed.
• Manual Focus Clutch mechanism allowing rapid transition from AF to manual focus. It also features a guide shooting magnification for use when shooting with manual focus.

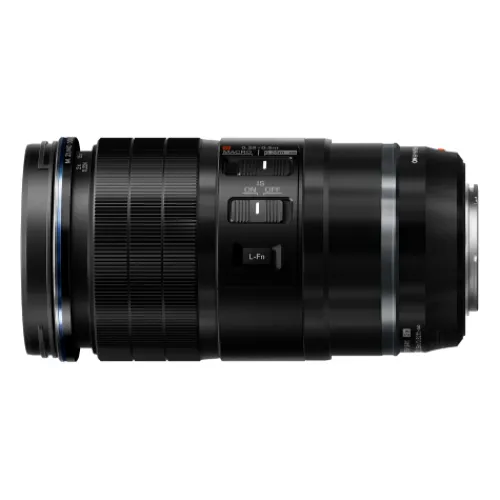

• L-Fn (lens function) button is available on the side of the lens so users can change settings with a single operation using their thumb while holding the camera.
• Compact, lightweight, versatile design at 0.453 kg 5 with a filter diameter of 62 mm, maximum diameter of 6.98 cm x overall length of 13.6 cm.

Separately available accessories

PRF-ZD62 PRO Protection Filter

STF-8 Macro Flash – A compact, lightweight twin-flash unit built with splash & dust proof, and freezeproof protection down to 10°C. Movable flash heads for more breadth of expression in macro shooting.
