Kondor Blue Camera Cages & Rigs>Komodo Ultimate Rig – V Mount Battery – Space Grey

Kondor Blue Komodo Ultimate Rig – V Mount Battery – Space Grey

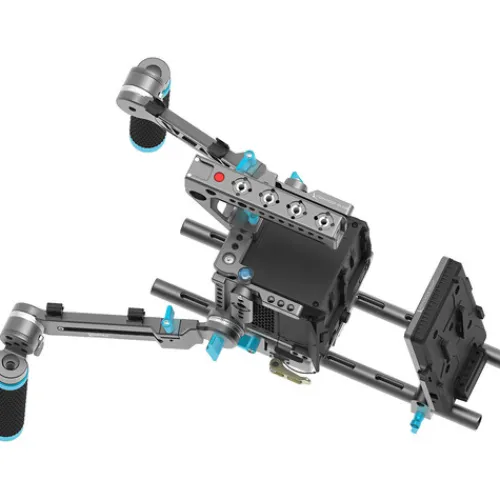

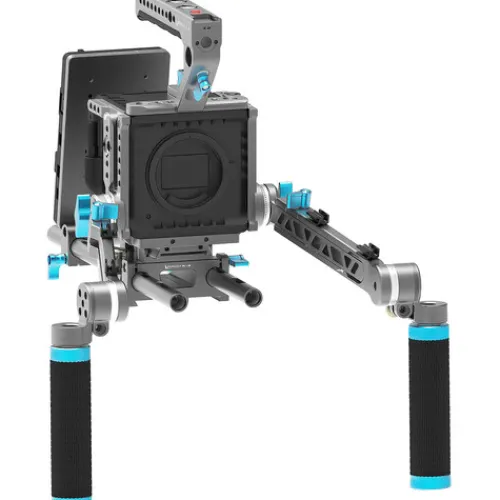

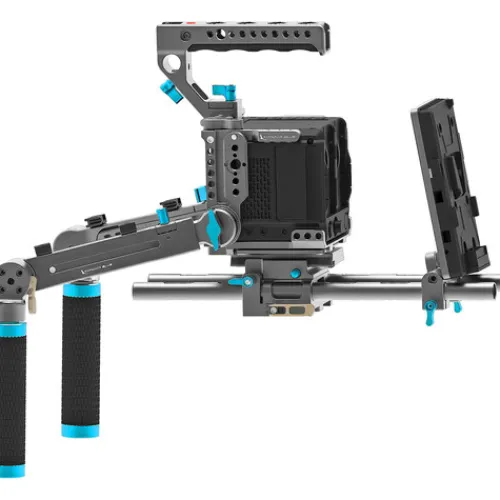

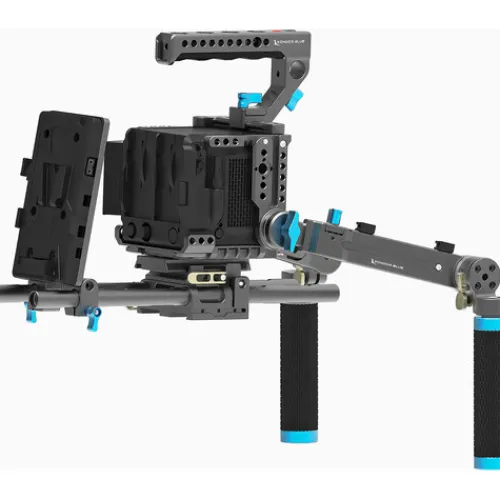

Add protection and a variety of accessories to your RED KOMODO 6K cinema camera with this Ultimate Camera Rig from Kondor Blue. The kit includes a modular camera cage designed for the RED KOMODO, a top handle, a universal baseplate, a quick release camera plate, right and left rosette extension arms, right and left quick release rubber handgrips, a cine V-mount plate, and two 12″ long 15mm PPSH rods.

The cage offers numerous mounting options such as ARRI-style rosettes, 1/4″-20 threads, 3/8″-16 ARRI-style anti-twist threads, NATO rails, 1/4″-20 and 3/8″-16 tripod mounting threads, and front lens support threads. It mounts onto the baseplate that features an ARRI-type/501 quick release plate and 15mm rods. The included extension arms mount onto the rosettes and can rotate 360° and extend, offering a variety of positions. The handgrips mount onto the rosettes and can also be rotated, and they are lined with rubber for a comfortable grip.

The included 12″ 15mm rods insert into the baseplate ports and offer additional mounting options for accessories, such as the included V-mount battery plate to power your rig, as well as extensions, a lens support, or follow focus motors. The top handle also features numerous mounting options, and it allows you to control the start/stop of your camera with a separately available cable.

Kondor Blue Camera Cage for RED KOMODO (Grey, Cage Only)

Add protection and a variety of accessories to your RED KOMODO 6K cinema camera with this grey Camera Cage from Kondor Blue. The camera mounts onto the formfitting cage using top and bottom screws so it doesn’t twist or slip, and there is rubber padding on the base to protect the camera from scratching or moving. Its open design allows you to access all the camera’s ports and controls.

The cage offers ARRI-style rosettes on the left and right sides so you can add optional side handgrips or extension arms for 360° rotation. There are also 1/4″-20 threads and two integrated NATO rails on the sides with safety pins to prevent your accessories from sliding. On the top of the cage is an integrated NATO rail with multiple 1/4″-20 threads and a 3/8″-16 ARRI-style anti-twist thread for accessories such as a monitor, top handle, or microphone. On the bottom, there are 1/4″-20 and 3/8″-16 tripod mounting threads, and on the front are two threads for an optional lens support. A magnetic tool set including an Allen wrench stores in the base of the cage.

Features

Compatibility

RED KOMODO 6K cinema camera

Modular Design

Constructed with top, side, and bottom plates, and each plate can be mounted independently of the others

Top Plate

Low-profile NATO rail with bubble level, 1/4″-20 threads, and 3/8″-16 ARRI-style threads

Side Plates

Symmetrical rosettes, vertical NATO rails with safety pins, 1/4″-20 threads, and 3/8″-16 ARRI-style threads

Bottom Plate

Helicoil steel threads, magnetic tool, side wings with 1/4″-20 threads, rubber pads for camera protection, and front threads for a Kondor Blue lens support

Accessory Options

Compatible with the Kondor Blue 501 ARRI-style baseplate for an 85mm height from mounting rods

Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Space Grey)

This space grey Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal cheese-style handle features multiple 1/4″-20, 3/8″-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8″-16 to 1/4″-20 bushings so you have additional options for mounting your accessories.

The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models, such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more, using a separately available cable. The grip of the Aluminium handle features a smooth, ergonomic design for added comfort and grip.

Quick Features

• Multiple 1/4″-20, 3/8″-16, and ARRI-style accessory threads
• Handle mounts with NATO clamp
• LANC trigger port with start/stop button
• Two shoe mounts and a single 15mm rod port for additional accessories
• Made from durable Aluminium with an ergonomic grip
• Comes in space grey Colour

Compatibility

• Start/stop control via Sony LANC/Panasonic protocol for Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more
• Cage or plate with NATO rail
• Magic arms, handles, and 15mm rod system
• Kondor Blue Mini Quick Release Plate

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)

Although featuring a fairly universal design, the space grey Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor’s Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4″-20 and 3/8″-16 mounting screws and offers 1/4″-20 and 3/8″-16 tripod mount threads on the bottom. It’s also rubber-padded to minimize twisting and prevent scratching.

Additional Features

• ARRI-standard dovetail
• 15mm LWS rod support
• Side-load camera plate system
• Manfrotto 501 standard camera plate
• 1/4″-20 and 3/8″-16 mounting screws
• 1/4″-20 and 3/8″-16 tripod mount threads

Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 12″)

Add a pair of standard 15mm rods to your rig with this two-pack of 12″ PPSH 15mm Rods from Kondor Blue. These Space grey Aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Space Grey)

Add professional battery power to your rig with this space grey V-mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.

The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and one D-Tap output. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.
