Elinchrom Video & Led Lighting>Ranger RX Speed AS Action Set – Pack and A Head #10276 Refurbished

Elinchrom Video & Led Lighting>Ranger RX Speed AS Action Set – Pack and A Head #10276 Refurbished

$316.41

SKU: SKUHF5WlBhTO8 Categories: Lighting, Video & Led Lighting Tag: Elinchrom Brand: Elinchrom

Description
Reviews (0)

Key Features:

Genuine Elinchrom Ranger RX Speed Action Set
Flash Duration 2x A Heads 1/2300s, 1x S Head 1/5120s
1100ws Output with f64 at 2m
Recycling Time: 2.9s, and Charge Time of 3 hrs
Each Charge Provides 250(slow) and 195(fast) Flashes
50 W / 12 V Halogen Modelling Light with On/Off Switch
Twin Electrode Speed A Flashtube with Even Light Distribution

The new Speed AS units are designated RX because they may be operated by remote control – by computer or by a handset – enormously increasing the ease of use on location. The AS version provides a 2:1 asymmetrical Power Distribution, 66% on head A and 33% for head B. The power range covers 8.5 f-stops from 1100ws to 6ws. The output B offers an action freezing flash duration of only 1/5120 s at t 0.5. The Ranger RX Speed AS recycles super fast in only 2.9s to full power. A fully charged battery delivers approximately 5100 flashes at low power setting and up to 250 at full power. Travel lite with only 8 kg.

Tech Specs for Ranger AS using A Heads

Power Settings, 8.5 f stops / 1100 – 6ws

Recycles 400ws in 1.2 sec, 600ws in 1.9 sec, Full in 2.9 sec

Autonomy 250 full power, 450 @ 600ws

Flash Duration t-0.5 1/4310s, 2x A Heads 1/2300s, 1x S Head 1/5120s on Plug

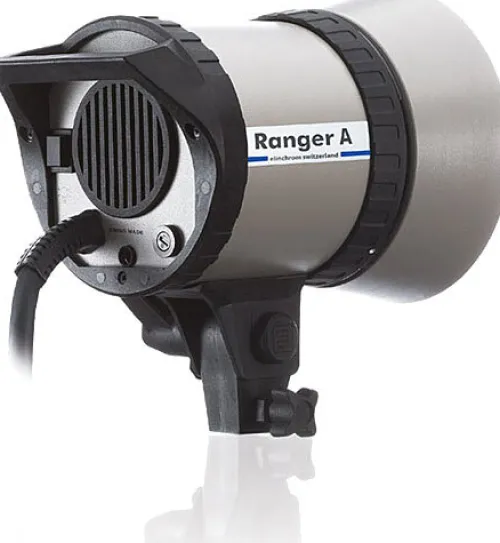

Ranger A Speed-Head

The Ranger A Head (SPEED) offers a unique super short flash duration with a single, twin electrode A-Flashtube to ensure even light distribution. The Ranger A Head is the perfect choice for “Action Freezing” photography up to a 1/5120 s when the A-Head is plugged into the Ranger Speed AS super fast channel B.

Full Specifications Ranger RX Speed AS

Joule / WS; max.	1,100
Power distribution	Asymmetrical
Interface for Computer and Hand Remote	All RX models; requires optional accessories + ERS software
F-stop, 2 m, 100 ISO, 1/250 s; Reflector 48°	64 @ 100% ; 45 @ 66% 32 @ 33%
Power range; Ws	100%: 17 – 1100 66%: A output: 11.5 – 733 33%: B output: 5.7- 366
Power range in f-stop	8.5
Recycling, fast @ min. / max. power	A output: fast 0.3 s / 3 s B output: fast 0.19 s / 1.2 s
Recycling slow @ min. / max. power	A output: slow 0.45 s / 5.5 s B output: slow 0.22 s / 1.9 s
Flash duration @ t 0,5; 1 / 2 A heads	A output: 1/2300 s / 1/4310 s B output: 1/5120 s
Flash duration @ t 0,5; 1 / 2 S heads	A output: 1/1250 s / 1/2250 s B output only: 1/2310 s
*Flashes out of one charged Battery @ min. power, slow/fast recycle	5100 / 3700
*Flashes, out of one charged Battery @ max. power, slow/fast recycle	250 / 195
Sync voltage	5 VDC
Stabilisation	+/- 1 V
**Battery lead acid (gel-electrolyte)	12 V / 12 Ah lead acid
Modelling lamp: ***1 head connected	2 x 50 W / 12 V or ***1 x 100 W / 12 V
Standard charger: recharge time, approx.	5 h
Quick charger: recharge time, approx.	3 h
Dimensions in cm	19 x 14 x 28
Weight in kg, incl. Battery	8
Ranger pack, included parts	10267 incl.: 19280 + 11075 + 19289 + 19283 + 19374

* Note: The number of flashes, recharging time and battery life, may vary from battery to battery
Specifications subject to change by the manufacturer without notice

Full Specifications Ranger A Head

Output in Joule / Ws	2,400
Modelling lamp	50 W 12 V
Modelling lamp timer on / off	15 & 30 seconds
Safety Fuse	5AF
Flashtube	Speed
Centred umbrella holder	Yes
Stand adapter	Yes
Bayonet, breech-lock-ring	Yes – All models since 1974
Weight incl. 3 m flash cable	2.4 kg
Dimensions in cm	22 x 13.5
Code	20101
Code Flashtube	24053

Note: Tolerances of specifications and components conform to IEC and CE standards. Technical data subject to change. No guarantee for misprints. The listed values can differ due to tolerances in components or measuring instruments.
Specifications subject to change by the manufacturer without notice

1x Elinchrom Ranger RX AS Speed
1x Elinchrom Free Lite A Head 1100ws (reflector not included)
