Blackmagic Streaming & Capture Devices>Micro Converter SDI to HDMI 3G with Power Supply

Blackmagic Streaming & Capture Devices>Micro Converter SDI to HDMI 3G with Power Supply

Original price was: $122.43.Current price is: $91.82.

SKU: SKUiyl6H3APDk Categories: Pro Video, Streaming & Capture Devices, Video Accessories Tag: Blackmagic Brand: Blackmagic

Description
Reviews (0)

Key Features:

1x SD/HD/3G-SDI Input & 1 x Loop Output
1 x HDMI Type A Output
DCI 2K SDI In/Out | 1080p60 HDMI Out
AC Power Supply & Socket Adapters
3D LUT for Calibrating or Loop Output
SDI A/B Selection | USB Power
Embedded Audio
Compact, Rugged Design
LED Video & Power Signal Indicators

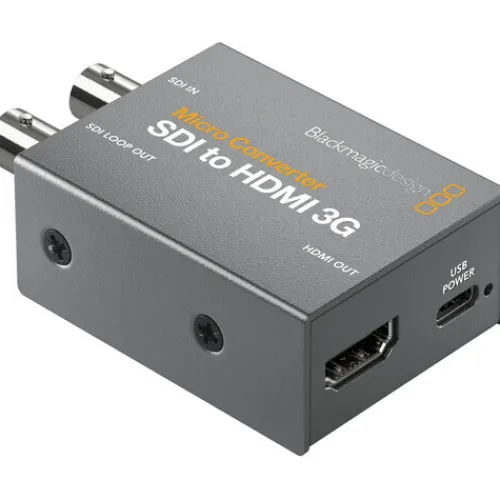

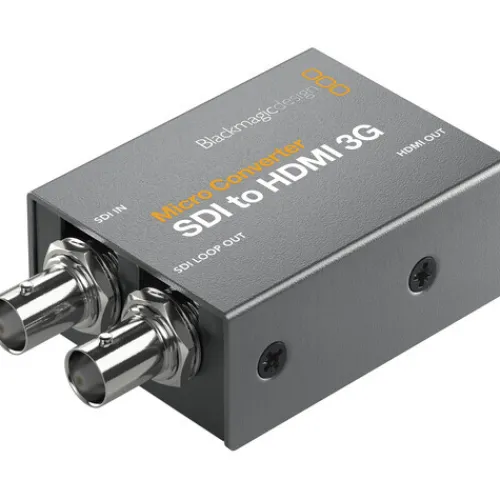

SDI to HDMI 3G Micro Converter

This ultra-compact and robust Blackmagic Design Micro Converter SDI to HDMI 3G allows you to use HDMI-input monitors and TVs for production monitoring. It features one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It also has a 17-point 3D LUT to calibrate HDMI- or SDI-input monitors and can output a LUT for viewing via the SDI loop output. Plus, it has automatic SD, HD, and Level A and B SDI detection and supports a wide range of pro broadcast resolutions including cine-style 48 fps.

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

Features

HDMI & SDI Outputs

One SD/HD/3G-SDI input
One HDMI output and one SD/HD/3G-SDI loop output

Compact, Rugged Design

Robust metal housing and rugged connectors
USB Type-C port for powering via a compatible component like a monitor or laptop
Updatable via the USB Type-C port and your Mac or PC

3D LUT Support

Supports a 7-point 3D LUT for colour calibrating your monitor, television, or projector
Outputs LUT for monitoring via SDI loop output

Wider Resolution Support

SDI support up to DCI 2Kp60
HDMI support up to 1080p60

Embedded Audio

Supports embedded HDMI input and embedded SDI output

LED Indicators

LED indicators for video and power signals

Versatile Power Options

Power from a monitor, laptop, or other component using the USB Type-C port

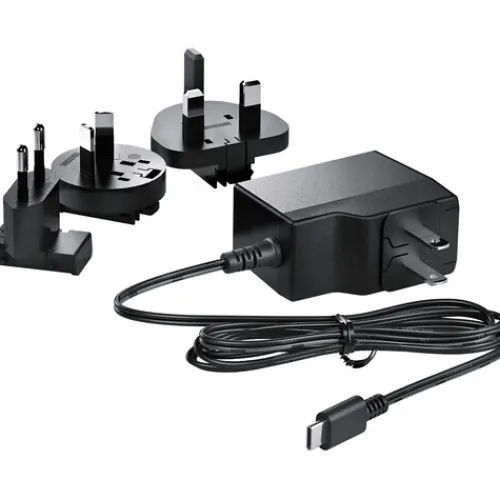

Includes a 100-240 AC power supply with four socket adapters

Video Inputs	1 x BNC (3G-SDI)
Video Outputs	1 x BNC (3G-SDI) (Loop Output)
Video Outputs	1 x HDMI
Other I/O	1 x USB-C Input
Input Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV)
	DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	DCI 2KPsF 25/29.97/30 fps
	1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080PsF 25/29.97/30 fps
	1080i 50/59.94/60 fps
	720p 50/59.94/60 fps
	480i / 525 lines 59.94 fps
	576i / 625 lines 50 fps
Output Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV)
	DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	DCI 2KPsF 25/29.97/30 fps
	1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080PsF 25/29.97/30 fps
	1080i 50/59.94/60 fps
	720p 50/59.94/60 fps
	480i / 525 lines 29.97 fps
	576i / 625 lines 25 fps
	HDMI (8/10-Bit 4:2:2 RGB, YUV)
	1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080i 50/59.94/60 fps
	720p 50/59.94/60 fps
	480i / 525 lines 29.97 fps
	576i / 625 lines 25 fps
Embedded Audio	HDMI/SDI

STANDARDS

Video Standard Compliance	SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support	Version 2.2

HARDWARE

Tally Light	Yes
OS Compatibility	macOS 10.14.15 or Later
OS Compatibility	Windows 10

POWER

Power I/O	1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption	2.5 W

ENVIRONMENTAL

Operating Temperature	32 to 72°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%

GENERAL

Dimensions	7.64 x 4.57 x 2.48 cm
Weight	0.15 kg
