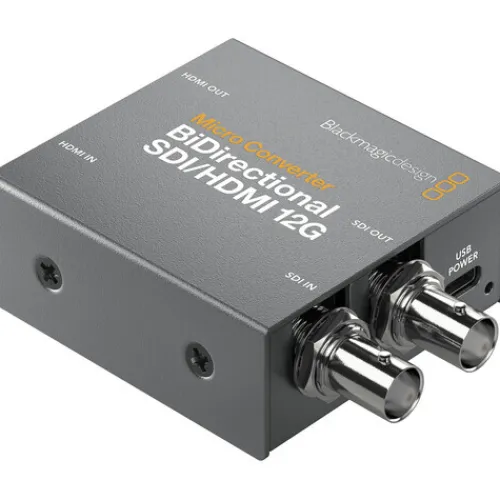

Blackmagic Streaming & Capture Devices>Micro Converter Bi-Directional SDI/HDMI 12G with Power Supply

$246.77

SKU: SKU9VGtV7IhzY Categories: Pro Video, Streaming & Capture Devices, Video Accessories Tag: Blackmagic Brand: Blackmagic

Description
Reviews (0)

Key Features:

Simultaneous SDI to HDMI & HDMI to SDI
1 x SD/HD/12G-SDI & 1x HDMI Input/Output
Supports up to DCI/UHD 4K60 Video
Blackmagic Camera Control, Tally Support
SDI Re-Clocking/HDMI Timecode
HDMI Copy Protection Support
Automatic Input Signal Detection
Embedded HDMI & SDI Input/Output
LED Video & Power Signal Indicators
A Power Supply Is Included

Blackmagic Design Micro Converter Overview

The Micro Converter BiDirectional SDI/HDMI 12G from Blackmagic Design makes it easy to combine SDI and HDMI components in your video setup. This compact bidirectional converter can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. With the ability to have each conversion direction be a different SD, HD, or UHD video standard, it’s like having two converters in one. Plus, it offers camera control conversion for Blackmagic HDMI cameras like the Pocket Cinema Camera 4K or 6K, allowing you to use them with an SDI-based live switcher.

The pocket-sized Micro Converter BiDirectional SDI/HDMI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions, including cine-style 48 fps, and both HDMI and SDI embedded audio input and output. This converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. A power supply and an international plug adapter set are included with the converter.

Features

Bidirectional Format Conversion

You can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Each conversion direction can be a different SD, HD, or UHD video standard, so it’s like getting two converters in one.

Compact, Rugged Design

Robust metal housing and rugged connectors
USB Type-C port for powering via a compatible component like a monitor or laptop
Updatable via the USB Type-C port and your Mac or Windows computer

HDMI Camera Control

Camera control conversion for the HDMI-output Blackmagic Pocket Cinema Camera 4K or 6K, enables users with an SDI-based live switcher

SDI & HDMI Timecode

HD and SD timecode support
Converts HDMI timecode to SDI and vice versa

SDI Re-Clocking

Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

SDI support from NTSC and PAL up to DCI/UHD 4K60
HDMI support from NTSC and PAL up to DCI/UHD 4K60

Embedded Audio

Supports embedded SDI and HDMI input and output

LED Indicators

LED indicators for video and power signals

Versatile Power Options

Power from a monitor, laptop, or other component using the USB Type-C port
Power supply and international plug adapter set are included

Video Inputs	1 x BNC (12G-SDI) Female
Video Inputs	1 x HDMI (HDMI 2.0) Female
Video Outputs	1 x BNC (12G-SDI) Female
Video Outputs	1 x HDMI (HDMI 2.0) Female
Other I/O	1 x USB-C Firmware Input (Shared Power)
Input Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV)
	DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	DCI 2KPsF 25/29.97/30 fps
	1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080PsF 25/29.97/30 fps
	1080i 50/59.94/60 fps
	720p 50/59.94/60 fps
	480i / 525 lines 59.94 fps
	576i / 625 lines 50 fps
	HDMI (8/10-Bit 4:2:2 RGB, YUV)
	DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080i 50/59.94/60 fps
	720p 50/59.94/60 fps
	480i / 525 lines 29.97 fps
	576i / 625 lines 25 fps
Output Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV)
	DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	DCI 2KPsF 25/29.97/30 fps
	1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080PsF 25/29.97/30 fps
	1080i 50/59.94/60 fps
	720p 50/59.94/60 fps
	480i / 525 lines 29.97 fps
	576i / 625 lines 25 fps
Embedded Audio	HDMI/SDI

STANDARDS

Video Standard Compliance	SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support	Version 2.2

HARDWARE

Tally Light	Yes
OS Compatibility	macOS 10.15.15 or Later
OS Compatibility	Windows 11.1 or Later

POWER

Power I/O	1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption	Device: 5 W

ENVIRONMENTAL

Operating Temperature	32 to 72°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%

GENERAL

Dimensions	8.77 x 5.89 x 2.48 cm
Weight	0.17 kg

* Specifications subject to change by the manufacturer without notice

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply
Power Adapter
International Plug Adapter Set
