Blackmagic Streaming & Capture Devices>Design Micro Converter BiDirectional SDI/HDMI 3G

Blackmagic Streaming & Capture Devices>Design Micro Converter BiDirectional SDI/HDMI 3G

Original price was: $138.33.Current price is: $107.90.

SKU: SKUmPF6FCxKMI Categories: Pro Video, Streaming & Capture Devices, Video Accessories Tag: Blackmagic Brand: Blackmagic

Description
Reviews (0)

Key Features:

Simultaneous SDI to HDMI & HDMI to SDI
1 x SD/HD/3G-SDI & 1x HDMI Input/Output
Supports up to DCI 2K60 Video
BMPCC Control & Tally via SDI Switcher
USB Power/SDI Re-Clocking/HDMI Timecode
Automatic Input Signal Detection
Embedded HDMI & SDI Input/Output
LED Video &Power Signal Indicators

Blackmagic Design Micro Converter Overview

Connect your SDI and HDMI components with ease using the Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G. This small, bidirectional converter can convert SDI to HDMI and vice versa, even when using different standards. It supports resolutions up to DCI 2K in SDI and 1080p60 in HDMI. It also offers camera control conversion for Blackmagic HDMI cameras like the BMPCC 4K or 6K, allowing you to use them with an SDI-based live switcher. Other features include HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions including cine-style 48 fps, and both HDMI and SDI embedded audio input and output.

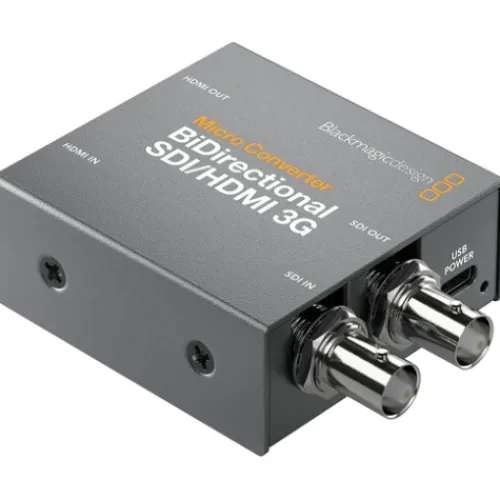

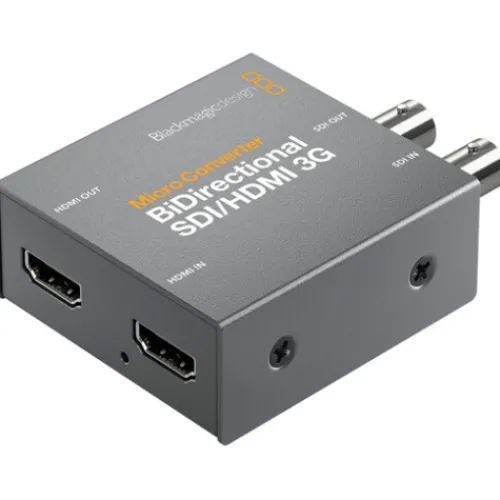

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the BiDirectional SDI/HDMI converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the separately available 100-240 VAC power supply, complete with four international socket adapters.

Compact, Rugged Design

Robust metal housing and rugged connectors
USB Type-C port for powering via a compatible component like a monitor or laptop
Updatable via the USB Type-C port and your Mac or PC

HDMI Camera Control

Camera control conversion for the HDMI-output BMPCC 4K or 6K, enables users with an SDI-based live switcher

SDI & HDMI Timecode

HD and SD timecode support
Converts HDMI timecode to SDI and vice versa

SDI Re-Clocking

Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

SDI support from NTSC and PAL up to DCI 2Kp60
HDMI support from NTSC and PAL up to 1080p60

Embedded Audio

Supports embedded SDI and HDMI input and output

LED Indicators

LED indicators for video and power signals

Versatile Power Options

Power from a monitor, laptop, or other component using the USB Type-C port

BLACKMAGIC DESIGN MICRO CONVERTER

Video Inputs	1 x BNC (3G-SDI)
Video Inputs	1 x HDMI (HDMI 2.0)
Video Outputs	1 x BNC (3G-SDI)
Video Outputs	1 x HDMI (HDMI 2.0)
Other I/O	1 x USB-C Input
Input Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV)
	DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	DCI 2KPsF 25/29.97/30 fps
	1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080PsF 25/29.97/30 fps
	1080i 50/59.94/60 fps
	720p 50/59.94/60 fps
	480i / 525 lines 59.94 fps
	576i / 625 lines 50 fps
	HDMI (8/10-Bit 4:2:2 RGB, YUV)
	1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080i 50/59.94/60 fps
	720p 50/59.94/60 fps
	480i / 525 lines 29.97 fps
	576i / 625 lines 25 fps
Output Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV)
	DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	DCI 2KPsF 25/29.97/30 fps
	1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080PsF 25/29.97/30 fps
	1080i 50/59.94/60 fps
	720p 50/59.94/60 fps
	480i / 525 lines 29.97 fps
	576i / 625 lines 25 fps
Embedded Audio	HDMI/SDI

STANDARDS

Video Standard Compliance	SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support	Version 2.2

HARDWARE

Tally Light	Yes
OS Compatibility	macOS 10.14.15 or Later
	Windows 10
	*As of November 2020: Check with the manufacturer for the most up-to-date compatibility

POWER

Power I/O	1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption	2.5 W

ENVIRONMENTAL

Operating Temperature	32 to 72°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%

GENERAL

Dimensions	8.077 x 5.893 x 2.489 cm
Weight	0.174 kg

* Specifications subject to change by the manufacturer without notice
