Blackmagic Streaming & Capture Devices>Design HDMI to SDI 6G Mini Converter

Blackmagic Streaming & Capture Devices>Design HDMI to SDI 6G Mini Converter

Original price was: $262.35.Current price is: $170.13.

SKU: SKUWzcUwyizUl Categories: Pro Video, Streaming & Capture Devices, Video Accessories Tag: Blackmagic Brand: Blackmagic

Description
Reviews (0)

Key Features:

4K HDMI Input
2 x 6G-SDI Outputs
Supports SD, HD, UHD 4K & DCI 4K Signals
Automatic Input Signal Detection
24-Bit, 48 kHz Audio
Analog & AES-EBU Digital Audio Inputs
Embeds Audio Into SDI Output

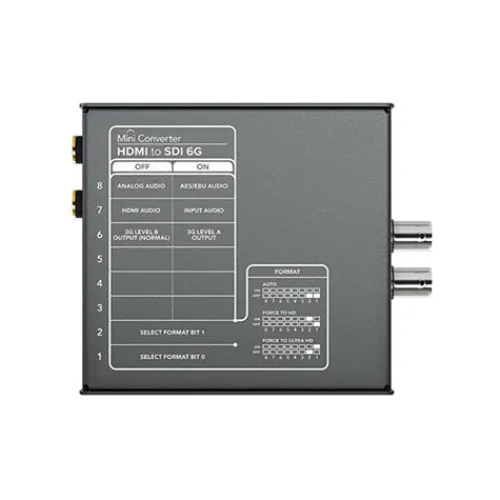

Settings via Mini Switches or Software
USB 2.0 Port for Firmware Updates

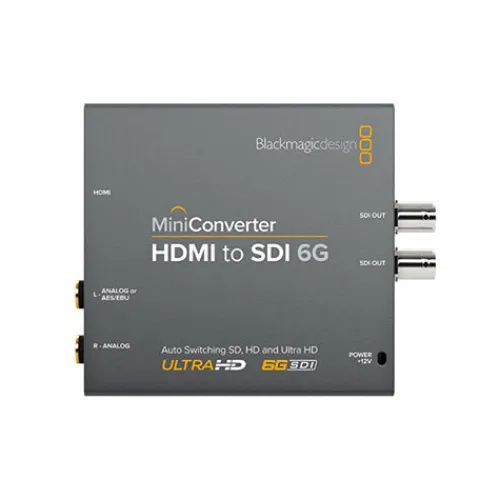

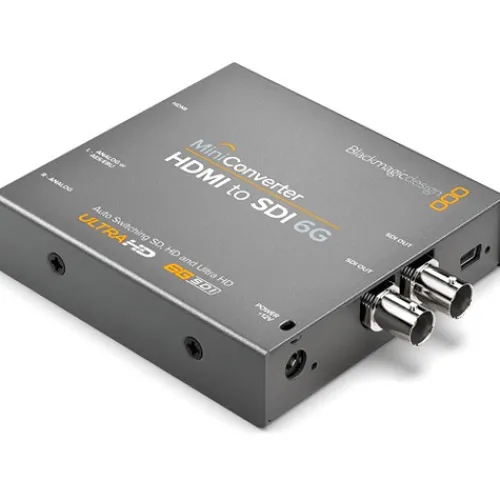

HDMI to SDI 6G Mini Converter

The Blackmagic Design HDMI to SDI 6G Mini Converter is the perfect way to connect consumer devices that output HDMI signals with professional SDI video equipment. It can convert HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. With its compact form factor and easy-to-use controls, this mini converter is ideal for a range of broadcast, post-production and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4″ input jacks which support four channels of AES/EBU digital audio or two channels of analog audio.

The Mini Converter’s settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design’s website. The USB port also enables the firmware to be updated.

The device is powered by an included 12V power supply and includes international socket adapters.

4:2:2 Sampling and Colour precision
HD scaler and SD down-conversion
24-bit, 48 kHz audio sampling
Compliant with SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081, and ITU-R BT.656/BT.601 standards

BLACKMAGIC DESIGN CONVMBHS

Video Input	1 x HDMI, Type A
Video Output	2 x 6G-SDI
Multi-Rate Support	Auto detection of SD, HD, 3G, or 6G-SDI signals
Reclocking	Yes
Audio Input	Analog: 2 channels with 1 x 1/4″ jack per channel
	AES/EBU: 4 channels with 1 x 1/4″ jack
FORMAT SUPPORT

DCI 4K	24p
UHD 4K	3840 x 2160p: 30/29.97/25/24/23.98
HD	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
SD	NTSC: 525i/59.94
SD	PAL: 625i/50
SDI Compliance	SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081
SDI Compliance	ITU-R BT.656 and ITU-R BT.601
SDI Video Rates	Switchable between SD, HD, Ultra HD and DCI 4K
SDI Video Sampling	4:2:2
SDI Colour Precision	4:2:2
SDI Colour Space	YUV
SDI Audio Sampling	24-bit, 48 kHz
SDI Auto Switching	Automatically detects SD, HD, or 6G-SDI

HDMI FORMAT SUPPORT

UHD 4K	3840 x 2160p: 30/29.97/25/24/23.98
HD	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
SD	NTSC: 525i/59.94
SD	PAL: 625i/50
HDMI Colour Space	YUV and RGB
HDMI Colour Precision	4:2:2
HDMI Colour Precision	4:4:4
HDCP Compliance	No. HDMI input is unable to capture from copy-protected HDMI sources
Format Conversion	HD down-conversion
Settings Control	Mini switches or USB software
Firmware Upgradeable	Via USB
Power Supply	12 VDC
Power Consumption	4.44 W
Operational Voltage Range	12 to 31 VDC
Operating Temperature	32 to 104°F / 0 to 40 °C
Storage Temperature	-4 to 113°F / -20 to 45 °C
Relative Humidity	0 to 90% non-condensing
Dimensions	11.40 x 9.22 x 2.29 cm
Weight	0.24 kg

* Specifications subject to change by the manufacturer without notice

Blackmagic Design HDMI to SDI 6G Mini Converter
12V Power Supply with International Socket Adapters
