Blackmagic Streaming & Capture Devices>Design DeckLink Mini Recorder HD

Original price was: $221.01.Current price is: $189.21.

SKU: SKUw0bP0D9a3l Categories: Pro Video, Streaming & Capture Devices, Video Accessories Tag: Blackmagic Brand: Blackmagic

Description
Reviews (0)

Key Features:

Broadcast-quality Recording
1-lane PCIe Slot Card (for 1-16 Lanes)
SDI and HDMI Inputs
Supports up to 2K DCI over SDI
Up to 1080p60 Resolution Support in HDMI
8-, 10-, 12-bit Video, 4:2:2 / 4:4:4
REC 601/709 Color Space Support
Mac, Windows, and Linux Compatible

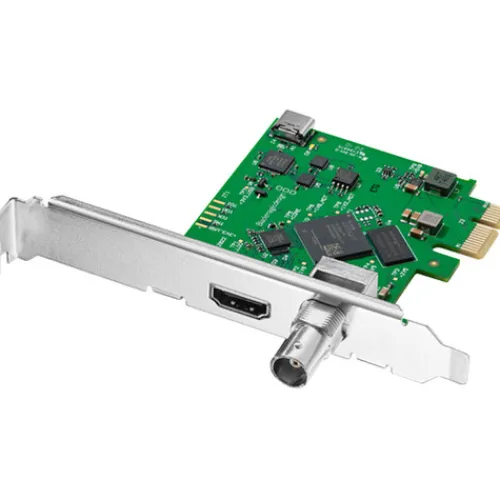

Blackmagic Design DeckLink Mini Recorder HD

Record HD video via SDI or HDMI with the Blackmagic Design DeckLink Mini Recorder HD. This 1-lane PCIe playback card features SDI and HDMI inputs and is compatible with 1-, 4-, 8-, and 16-lane PCIe slots. It enables you to capture up to DCI 2K video over SDI and HD video over HDMI 2.0, making it a versatile choice for your recording needs.

The card is compatible with such software packages as Wirecast, vMix, and OBS. In addition, the card supports hardware-based real-time colour space conversion. The card also automatically switches between SD and HD formats, so it’ll handle all common video formats as well as HDR.

PCIe Compatibility

PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)

Supported Software Applications

Wirecast
vMix
OBS
Cinergy Capture Pro
DevTek EasyMediaSuite
Glookast Capturer
Livestream Producer
Metus Ingest
Softron MovieRecorder
ToolsOnAir just:in
Burst Video WebClip2Go & [REC]Marker
Zoom

Supported Codecs

AVC-Intra
AVCHD
Canon XF MPEG2
Digital SLR
DV-NTSC
DV-PAL
DVCPRO50
DVCPROHD
DPX
HDV
HEVC
XDCAM EX
XDCAM HD
XDCAMHD422
DNxHR & DNxHD
AppleProRes 4444
Apple ProRes 422 HQ
Apple ProRes 422
Apple ProRes 422LT
Apple ProRes 422 Proxy
Uncompressed 8-bit 4:2:2
Uncompressed 10-bit 4:2:2
Uncompressed 10-bit 4:4:4

Hardware Frame Buffer

v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)

INPUTS / OUTPUTS

Video Inputs	1x BNC (3G-SDI)
	1x HDMI (2.0)

FORMAT SUPPORT

Input Video Format	SDI (8/10/12-Bit 4:4:4 RGB)
	1080p at 23.98/24/25/29.97/30 fps
	720p at 50/59.94/60 fps
	576i / 625 lines at 50 fps
	480i / 525 lines at 59.94 fps
	SDI (8/10-Bit 4:2:2 YUV)
	DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps
	DCI 2KPsF at 23.98/24/25/29.97/30 fps
	1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
	1080PsF at 23.98/24/25/29.97/30 fps
	1080i at 50/59.94/60 fps
	576i / 625 lines at 50 fps
	480i / 525 lines at 59.94 fps
	HDMI (8-Bit 4:4:4 RGB, YUV)
	1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
	1080i at 50/59.94/60 fps
	720p at 50/59.94/60 fps
	576i / 625 lines at 50 fps
	480i / 525 lines at 59.94 fps
	HDMI (12-Bit 4:4:4 YUV)
	1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
	1080i at 50/59.94/60 fps
	720p at 50/59.94/60 fps
	576i / 625 lines at 50 fps
	480i / 525 lines at 59.94 fps
Embedded Audio	SDI: 16-Channel
	HDMI: 8-Channel

STANDARDS

Video Standard Compliance	SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1

HARDWARE

OS Compatibility	macOS 11.1
	macOS 12.0 or Later
	Windows 10
	Windows 11
	Linux
Power Consumption	Device: 3 W

ENVIRONMENTAL

Operating Temperature	37 to 72°F / 5 to 40°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Operating Humidity	0 to 90% ()
Storage Humidity	0 to 90% (Non-Condensing)

GENERAL

Dimensions	9.195 cm
Weight	0.056 Kg
