Blackmagic Streaming & Capture Devices>Design DeckLink Mini Monitor 4K

Blackmagic Streaming & Capture Devices>Design DeckLink Mini Monitor 4K

$255.99

SKU: SKUIcvwuDigj8 Categories: Pro Video, Streaming & Capture Devices, Video Accessories Tag: Blackmagic Brand: Blackmagic

Description
Reviews (0)

Key Features:

SD/HD/3G/6G-SDI Output
HDMI Output
PCI-express 2.0 Interface
DCI 4K, UHD, HD, and SD Video Support
10-bit Processing
Hardware Color Space Conversion
Software HD Down-conversion
MacOS X, Windows, and Linux Compatible

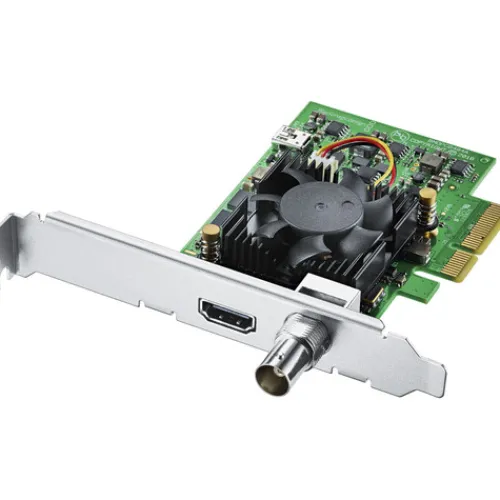

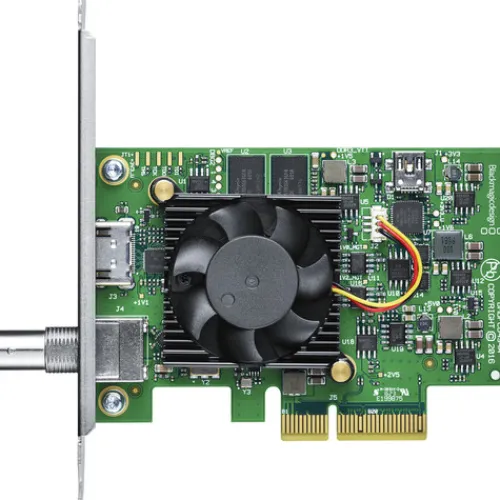

Blackmagic Design DeckLink Mini Monitor 4K

The DeckLink Mini Monitor 4K from Blackmagic Design allows you to play out 4K content to high-resolution monitors and recorders in real-time from your compatible editing system. Featuring a 6G-SDI output (backward compatible with SD, HD, and 3G formats) and HDMI 2.0 terminals, this card lets you connect effortlessly to professional broadcast equipment as well as consumer monitors and televisions.

Consumer and professional video codecs are supported, including H.264, Apple ProRes, AVC-Intra, and more, allowing full-resolution output of nearly any project. Wide software support including Blackmagic Design’s own DaVinci Resolve and Fusion in addition to other popular platforms such as Apple’s Final Cut Pro X, Avid’s Media Composer, and Adobe’s Premiere and After Effects CC, allows for the same hardware to be used with changing workflows over time.

The card itself requires an open PCI-Express slot conforming to at least PCI-E 2.0 x4 specifications. PCI-E x8 and x16 slots in 2.0 and 3.0 variants can also be used. A full-height bracket comes pre-installed, and a low-profile bracket is included for installation in a small form-factor PC or an external chassis.

Processing Features

Colour Space Conversion: Hardware-based, real-time colour space conversion
HD Down-Conversion: Software-based down-conversion during video playback
Real-Time Effects: Supports real-time effects from Final Cut Pro X, Premiere Pro CC Mercury Playback Engine, and Avid Media Composer Effects

Software Support

DaVinci Resolve, Fusion, Final Cut Pro X, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Photoshop CC, Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity, InfoCaster

INPUTS / OUTPUTS

System Connection	PCIe 2.0 x4
Video Outputs	1x BNC (6G-SDI) Female
	1x HDMI (2.0a) Female

FORMAT SUPPORT

Output Video Format	SDI (8/10-Bit 4:2:2 YUV)
	DCI 4K at 23.98/24/25 fps
	UHD 4K at 23.98/24/25/29.97/30 fps
	DCI 2K at 23.98/24/25 fps
	DCI 2KPsF at 23.98/24/25 fps
	SDI (8/10/12-Bit 4:4:4 RGB)
	1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
	1080PsF at 23.98/24/25/29.97/30 fps
	1080i at 50/59.94/60 fps
	720p at 50/59.94/60 fps
	576i / 625 lines
	480i / 525 lines
	HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
	DCI 4K at 23.98/24/25 fps
	UHD 4K at 23.98/24/25/29.97/30 fps
	1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
	1080PsF at 23.98/24/25/29.97/30 fps
	1080i at 50/59.94/60 fps
	720p at 50/59.94/60 fps
	576i / 625 lines
	480i / 525 lines
Embedded Audio	SDI: 16-Channel
	HDMI: 8-Channel

STANDARDS

Video Standard Compliance	SMPTE 259M/292M/296M/372M/425M/ST-2081
	ITU -R BT.601/BT.656

HARDWARE

OS Compatibility	Windows 7 or Later
	macOS 10.14 or Later
	Linux
Power Consumption	10 W

ENVIRONMENTAL

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Operating Humidity	0 to 90%

GENERAL

Dimensions	11.94 cm
Weight	0.090 Kg
