Blackmagic Design DaVinci Resolve Advanced Panel

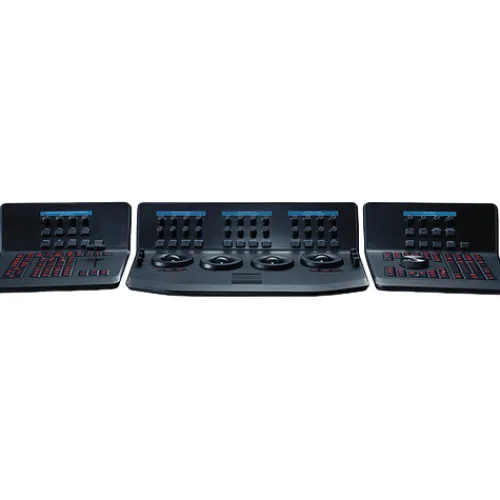

The DaVinci Resolve Advanced Panel from Blackmagic Design offers a substantial upgrade in functionality compared to the Micro or Mini panel. It features a main console flanked by two auxiliary consoles, along with a slide-out keyboard in the centre. This setup provides one-touch access to nearly every control and parameter within the DaVinci Resolve software, enhancing your workflow and efficiency.

The center console incorporates four high-resolution, weighted trackballs and 30 soft, customisable control knobs for accessing colour-correction tools in the Resolve software. The custom control knobs feature 4096 steps per rotation and push-button reset so you can achieve high-quality and precise colour correction using the DaVinci Resolve system.

The Resolve control surface incorporates a slide-out keyboard that is useful when naming or renaming files, and it can be neatly tucked away when not in use. All functions are accessible via separate keys, such as the reference keys, and the fader T-bar that allows you to wipe between reference stills.

You can easily control the image sections via keys located for easy access at your natural hand positions. Lift, gamma, and gain adjustments along with RGB control are achieved via trackballs. Menus and indicators are visible via five high-resolution LCD screens that offer a view of the functions of all the knobs and buttons. Soft knobs that can precisely control parameters via single touch are provided, and no electrical contact eliminates wearing out of the knobs. Aesthetically illuminated keys are backlit using RGB colour and intensity. Complete control of the project timeline or deck is offered via the jog/shuttle knob and transport controls.

Menus, Soft Keys, and Soft Knob Control

All Resolve panels have soft keys and variable control knobs within the LCD panel, which provide an accurate visual reference to the control without the risk of error.

Trackball Panel

The center panel has four trackballs, each with a surrounding control ring. The three trackballs to the left control lift, gamma, and gain when Resolve is set for primary grading. When in Log grading, they adjust lowlights, mid-tones, and highlights. The fourth trackball works similar to a mouse for moving the on-screen cursor. It can also be used to draw Power Windows, control colour curve point position, and act as an offset control for the primary grade.

Keyboard

The center panel incorporates a slide-out keyboard that is useful when naming or renaming files, and it can be neatly tucked away when not in use.

Luminance

• Y lift control: Adjust the contrast of the image in the darker areas, specifically in the Y (luminance) channel only. This adjustment allows for changing the black point without changing saturation.
• Y gamma control: Adjust the contrast of the image in the mid-tone areas, specifically in the Y (luminance) channel only. This control helps add depth and extra vibrancy to shots.
• Y gain: You can reduce hot spots or tweak the whites to define a look.

Contrast

• Contrast control: Increase contrast to make the blacks darker and the whites brighter, or decrease contrast to do the opposite.
• Pivot: Change the center of tonality about which dark and bright parts of the image are stretched or narrowed during a contrast adjustment.
• Mid-tone detail: Affect the contrast of regions of the image with high edge detail to increase or decrease the perception of image sharpness and definition. It’s often used for softening facial features, making it popular for beauty shots.

Detail

• Colour boost control: Raise the saturation in regions of the image with low saturation while leaving properly saturated areas alone. Also known as a vibrance operation, this is useful for adding colour without oversaturating the image.
• Shadow control: Selectively lighten or darken shadow detail without affecting your image’s mid-tones.
• Highlight control: Enable retrieving blown-out highlight detail in high dynamic range media by lowering this parameter. This allows you to achieve a smooth blend between the retrieved highlights and unadjusted mid-tones, for a natural-looking image.

Saturation

Increases or decreases overall image saturation; you can turn your colour image into a Greyscale image with this control.

• Hue control: Rotates all hues of the image 360° around the colour wheel. The default setting is 50, which retains the original distribution of hues.
• Luminance mix control: Controls the balance between the YRGB adjustments and Y-only adjustments made using the Y channel lift, gamma, and gain controls.

T-Bar Panel

The panel features a T-bar mix/wipe control and a number of menu and function keys. You can position the T-bar panel on either side of the Trackball panel.

Transport Panel

The Transport panel features the timeline transport controls and a jog/shuttle control, as well as a numerical keypad and associated function keys. The Transport panel can be positioned on either side of the Trackball panel.
