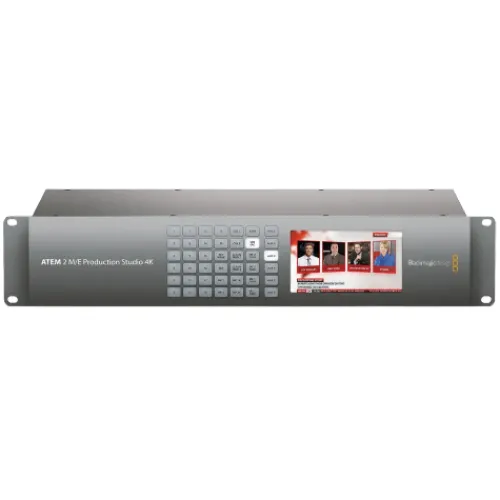

Blackmagic Design ATEM 2 M/E Production Studio 4K

The ATEM 2 M/E Production Studio 4K is a versatile live event multicamera production switcher, equipped with 20 video inputs in a compact 2RU chassis. It supports NTSC, PAL, HD, and Ultra HD 4K (3840×2160) video formats, allowing connections to a diverse range of cameras and sources while delivering a single program stream in SD, HD, or Ultra HD video all in real time with no rendering delays. The switcher includes a reference video input for synchronising with other equipment using tri-level or blackburst sync. Additionally, each input features its own frame synchroniser, enabling the use of non-Genlock cameras and video input from computer sources.

The switcher provides 20 6G-SDI video inputs and one 4K HDMI input, which shares a channel with one of the 6G-SDI inputs. Outputs include three 6G-SDI Program outputs, one HDMI Program output, six 6G-SDI auxiliary outputs. All inputs and outputs are SD/HD/UHD switchable, with the exception of dedicated down-converted HD Program output for monitoring UHD footage on an SDI-equipped HD monitor. Two independent multi-view outputs are available, in both SDI and HDMI, so you can monitor up to 16 cameras across two screens.

The switcher features luma and chroma keyers for real time effects and composites in Ultra HD, with 10-bit processing. Two downstream keyers allow you to use two graphics/logos/titles/lower thirds from up to twenty stored graphics in a wide variety of formats. Additionally, the switcher features a built-in SuperSource layer switcher which, in addition to the two full M/E’s, keyers and DVE, provides an additional four independent DVE channels letting you re-size and position live cameras, video replays, broadcast graphics, and more.

A built-in 22-input audio mixer handles the embedded HDMI and SDI audio from the 20 active video inputs as well as audio from the balanced or unbalanced analog audio inputs to provide you flexibility and creative audio options. Audio output is embedded in the SDI and HDMI stream, as well as available via balanced audio outputs. The control panels connect via the Ethernet port and provide control all the features of the switcher. Illuminated front panel buttons on the switcher allow you to locally select the aux output, while a 2-inch LCD screen built into the front of the unit allows you to see the aux output for instant confirmation of the correct output.

Either a Mac or PC running the included ATEM software controls the switcher’s operation and settings. For those who like the feel of a physical control panel, the optional ATEM 1 M/E and 2 M/E Broadcast Panels can be used.

Video

The ATEM 2 M/E Production Studio 4K switcher supports 4K Ultra HD video (3840 x 2160), which is four times the resolution of Full HD. The video format is set by the user and must be the same across each input, as the switcher cannot scale different input formats to match the project format.The switcher features 20 single link 6G-SDI and one HDMI 4K input, which allows you to connect SD/HD/Ultra HD and computer-based signals to the switcher. However, the HDMI input is shared with one of the SDI inputs, so you can only have a maximum of 20 inputs.The switcher takes reference video in for sync timing, either blackburst or tri-level sync, so that it can interface with other post production equipment.Each input incorporates its own frame synchroniser, which enables you to use cameras that do not have genlock capability or to input computer sources such as Keynote or PowerPoint Presentations.

Audio

The switcher includes a built-in audio mixer for mixing and balancing embedded audio from all 20 video inputs as well as the two audio inputs, each with two channel support. This lets you manually mix sources or you can set mixer inputs to “audio follow video” so your audio crossfades as you switch between sources.

Video Outputs

The switcher features two program outputs for the final video, delivering SD/HD/Ultra HD via three 6G-SDI port and one HDMI 4K connector.The switcher features six SDI auxiliary outputs capable of delivering the program out feed with or without the downstream keyer effects in SD, HD and Ultra HD. Control of the Aux output is by front mounted panel buttons, and built-in LCD screen for immediate confirmation of the Aux output.Two independent multi-view outputs available via an SDI or HDMI connectors so you can see up to 16 cameras across two screens.

Effects

Transitions

The ATEM 2 M/E Production Studio 4K switcher features four built-in transitions.

Cut: ATEM instantly changes from current program source to the preview source precisely at the moment you hit the button. Cuts can be performed by directly selecting sources on the program bus or more commonly by pressing the cut button to transition to the next source lined up on the preview bus.

Mix: Dissolves from one image to another. You can program a pre-set transition rate, or use the included software control panel or available hardware panels to manually transition from one shot to another.

Dip: Is similar to the mix/dissolve, except it first it transitions to a colour/graphic or video source and then to the next shot.

Wipe patterns: With 18 built-in wipe patterns, you can create over 100 different transitions, and the patterns can be inverted or softened and you can customise the colour of the border. You can also insert up to three live video streams into the borders.

Key Frameable Transitions

The built-in DVE allows you to create key frame based DVE moves, flying graphics and animated stingers.

Keyers

The switcher features four upstream keyers and a DVE, allowing you to layer live video, title, graphics and animation over live video. You can choose from chroma, luma, linear, and pattern keys at Ultra HD resolution with 10-bit processing. Two downstream keyers allow you to add graphics, lower thirds, titles and logos for a polished live production. The DVE allows you to create a picture-in-picture effect.

Control Interface

The switcher features back lit front panel control buttons for manual control.The switcher uses an Ethernet connection to interface with control surfaces such as the optional ATEM 1 M/E and 2 M/E Broadcast Panels.You can also control the switcher by using the included ATEM Software Control software from a Mac or Windows computer over Ethernet. You can control all production settings of the switcher as well as directly import graphics from your computer into the switcher’s media pool.You set the format for each project you are working on, from SD to HD to Ultra HD, selecting resolution and frame rate. This is accomplished by using either the included software for Mac/PC or via the ATEM 1 M/E or ATEM 2 M/E Broadcast Panel.Using the Ethernet port on the switcher allows you to connect control surfaces directly to the switcher or you can control the switcher across a network.The switcher features a USB port that is used for software updates and to set the switcher’s chassis IP address, which can only be done by using a computer running the ATEM Switcher Utility connected to the switcher’s USB port.

Rack Mount

The switcher is 2RU in height and has built-in rack mount ears for mounting in a production road case or in a post production facility.
